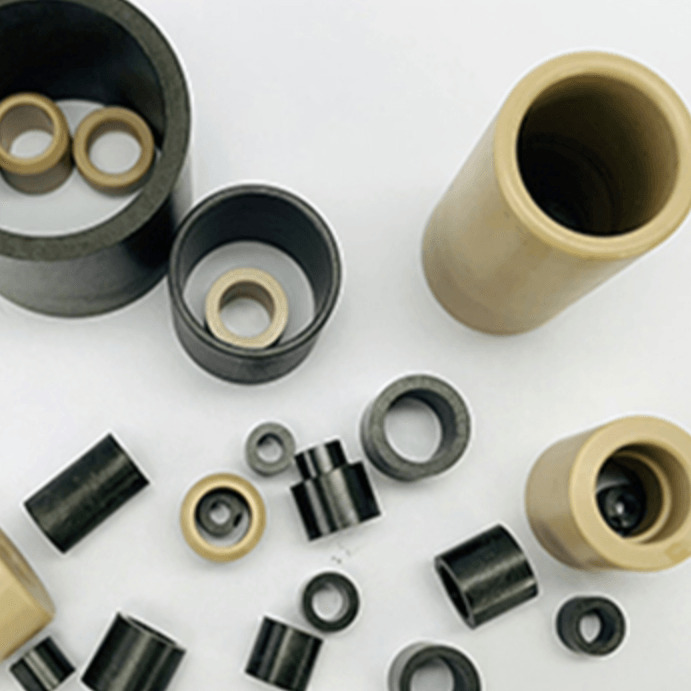

TPI Self-Lubricating Bushings
Need Help?
Our team are always happy to help!
Live Chat: Available from the bottom right of your screen.
Email: sales@highperformancepolymer.com
Phone: +44(0)1865 684080
Material:
Measurement System: Metric
Colour: Various
TPI Self-Lubricating Bushings conform to the following Standards/Norms:
TPI self-lubricating bushings, also known as TPI DU bushings, represent a class of bushings designed to minimize friction and wear in mechanical systems while eliminating the need for external lubrication. These bushings are highly regarded for their ability to provide reliable, long-lasting performance in a variety of demanding applications across multiple industries. TPI bushings are particularly prized for their self-lubricating properties, which enhance their versatility and make them invaluable components in various sectors.
Design and Properties
TPI self-lubricating bushings are meticulously engineered to address the challenges of friction and wear encountered in mechanical systems. The key design elements and properties that set them apart include:
-
Self-Lubricating: The hallmark feature of TPI bushings is their self-lubricating capability. They contain solid lubricants, typically PTFE (polytetrafluoroethylene) or other proprietary blends, incorporated into the bushing material. These embedded lubricants provide consistent and reliable lubrication over time, eliminating the need for external lubrication and reducing maintenance requirements.
-
Low Friction: TPI bushings offer low friction coefficients, which reduce wear and minimize energy consumption. This low-friction characteristic ensures smooth and efficient movement of components, contributing to the overall performance of mechanical systems.
-
High Load Capacity: Despite their compact size, TPI self-lubricating bushings have a remarkable load-carrying capacity. They are designed to withstand substantial radial and axial loads, making them suitable for heavy-duty applications.
-
Chemical Resistance: TPI bushings are typically resistant to various chemicals and solvents, ensuring compatibility with a wide range of operating conditions. This property is essential in industries where exposure to corrosive substances is a concern.
-
Low Noise and Vibration: The self-lubricating properties of TPI bushings contribute to reduced noise and vibration in mechanical systems, resulting in quieter and smoother operation.
Applications and Industries
TPI self-lubricating bushings are used in diverse industries where friction reduction, wear resistance, and reliable performance are critical. Some of the key industries that rely on TPI bushings include:
1. Manufacturing and Industrial Machinery: TPI bushings are integral components in various manufacturing and industrial machinery, including conveyors, injection molding machines, and robotic systems. Their low friction properties and ability to handle heavy loads ensure efficient and reliable operation.
2. Automotive and Transportation: In the automotive industry, TPI self-lubricating bushings are employed in suspension systems, steering linkages, and various chassis components. They enhance ride comfort, reduce friction-induced wear, and contribute to overall vehicle durability. Additionally, they find use in rail and mass transit systems.
3. Aerospace and Aviation: The aerospace sector relies on TPI bushings for a range of applications, including aircraft landing gear assemblies, control mechanisms, and cabin equipment. Their self-lubricating properties and resistance to high temperatures are advantageous in aviation.
4. Renewable Energy: TPI bushings are used in renewable energy applications, such as wind turbines and solar tracking systems. They contribute to the efficiency and reliability of these systems by reducing friction and wear in critical components.
5. Food and Beverage Processing: The food and beverage industry benefits from TPI bushings due to their ability to operate in hygienic environments. They are used in machinery for food processing, bottling, and packaging, where they help ensure the integrity of products and comply with stringent hygiene standards.
6. Medical Devices: TPI self-lubricating bushings are utilised in medical devices and equipment, including diagnostic instruments and laboratory machinery. Their resistance to corrosion, low noise properties, and self-lubrication are essential in medical applications.
7. Marine and Offshore: In marine and offshore environments, TPI bushings are found in shipboard equipment, winches, and offshore drilling rigs. Their resistance to saltwater corrosion and ability to provide reliable performance in harsh conditions are crucial for maritime operations.
8. Construction and Heavy Equipment: The construction industry relies on TPI bushings for applications in construction machinery, cranes, and earthmoving equipment. Their ability to handle heavy loads and reduce friction-induced wear is vital in these demanding environments.
9. Energy and Power Generation: TPI bushings play a role in the energy sector, supporting equipment in power generation plants, including turbines, pumps, and generators. Their self-lubrication and wear resistance contribute to the efficiency and reliability of power generation processes.
In summary, TPI self-lubricating bushings are versatile components used across a wide spectrum of industries due to their exceptional properties, including self-lubrication, low friction, high load capacity, and chemical resistance. Their ability to reduce friction and wear, eliminate the need for external lubrication, and provide reliable performance makes them integral components in numerous applications, enhancing the efficiency and longevity of mechanical systems across various sectors.
The data sheet is available as a PDF to download below.
Return components within 90 days for a full refund. Please see returns terms and conditions for further information.
Inner Diameter (d) (mm) | Outer Diameter (D) (mm) | Length (mm) |
1.5 | 4.0 | 2.1 |
1.5 | 4.0 | 4.2 |
1.5 | 4.0 | 4.4 |
2.0 | 5.0 | 4.8 |
3.0 | 6.0 | 5.0 |
4.0 | 7.0 | 6.0 |
5.0 | 8.0 | 6.0 |
6.0 | 9.0 | 8.0 |
7.0 | 11.0 | 8.0 |
8.0 | 12.0 | 8.0 |
9.0 | 13.0 | 10.0 |
10.0 | 14.0 | 10.0 |
15.0 | 20.0 | 30.0 |
17.0 | 23.0 | 15.0 |
20.0 | 40.0 | 50.5 |
22.0 | 28.0 | 20.0 |
30.0 | 36.0 | 30.0 |
35.2 | 50.5 | 50.0 |
65.2 | 85.5 | 70.0 |
80.2 | 100.0 | 80.0 |
Dimension Table
Dimensions for TPI Self-Lubricating Bushings in all available sizes are shown according to the product drawing above.
