PEEK Grub/Set Screws DIN 913

Available in 21 days if you order today.
Regular price $6.55 AUD / each Ex. VAT
Regular price Sale $11.14 AUD Sale price $6.55 AUD Ex. VAT

Instant Quote Guarantee:
Submit a request for quote online by clicking the button below and it'll be delivered to your inbox within 5 mins.

Request For Quote

Need Help?
Our team are always happy to help!
Live Chat: Available from the bottom right of your screen.
Email: sales@highperformancepolymer.com
Phone: +44(0)1865 684080

PEEK Grub/Set Screws DIN 913

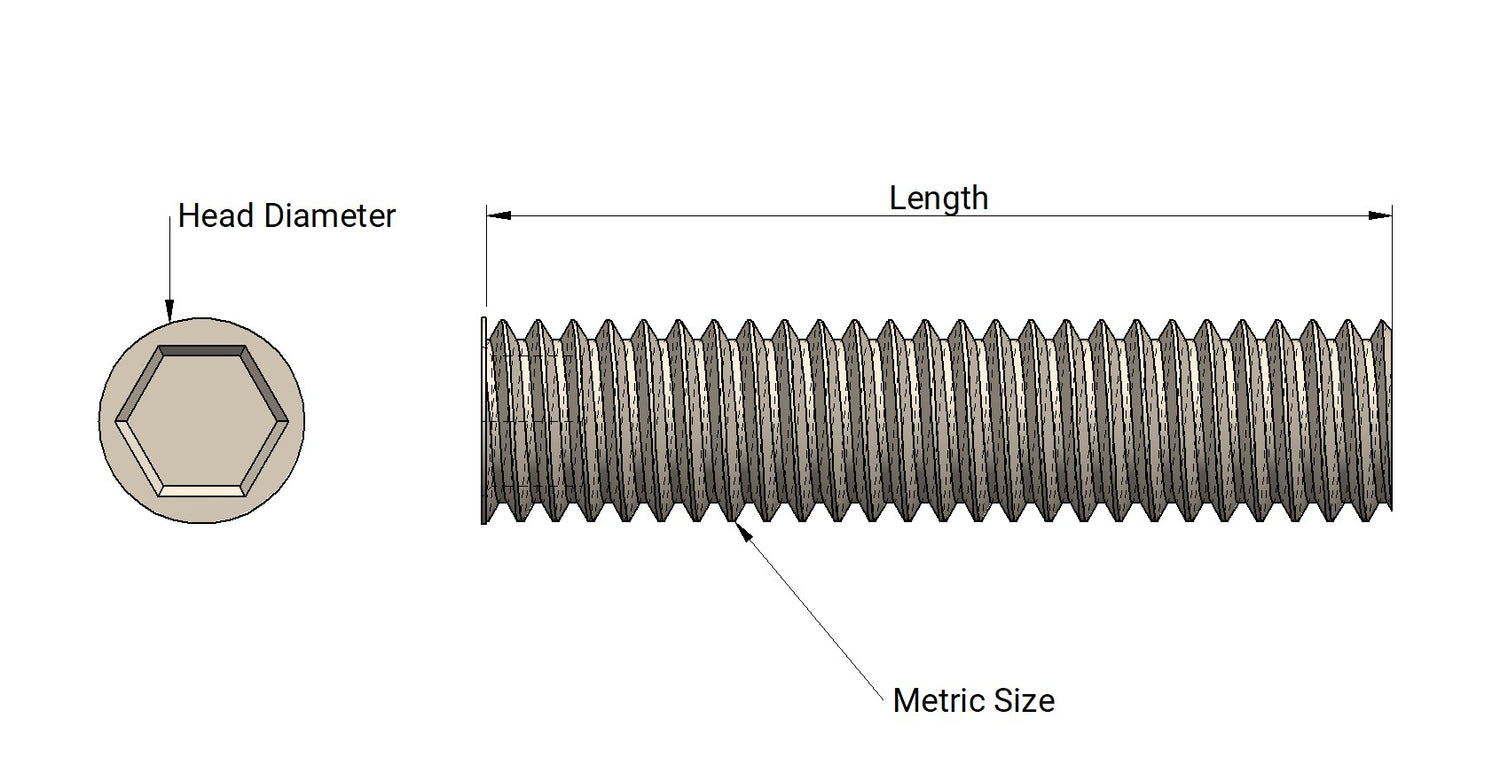

Product Drawing

Grub/Set Screw Dimension Table
M Size Pitch (mm) Hex Socket Width (mm) Hex Socket Depth (mm)
M3 0.5 1.5 2.0
M4 0.7 2.0 2.5
M5 0.8 2.5 3.0
M6 1.0 3.0 3.5
M8 1.25 4.0 5.0

Dimension Table

Dimensions for PEEK Grub/Set Screws DIN 913 in all available sizes are shown according to the product drawing above.

Victrex® 450G Natural PEEK Granule - High Performance Polymer-Plastic Fastener Components

PEEK (Polyether Ether Ketone) Datasheet

Follow the link below to view our PEEK data sheet. This includes properties such as mechanical, electrical, thermal and chemical resistance.

Download PDF

PEEK Key Properties

  • Exceptional chemical resistance - PEEK can only be dissolved in high concentrations of Nitric and Sulphuric acids.

    Exceptional dimensional stability - Even at high temperatures (260°).

    Low Radio Frequency noise - Comparable to air.

    Excellent weight to strength ratio - Specific gravity (1.30).

  • - High heat operation (260°C)

    - High tensile strength (97mpa)

    - Ultra low weight

    - Flame resistance

    - Abrasion resistance

    - Hydrolysis resistance

  • - Highly resistant to radiation

    - Non-Magnetic

    - Very low outgassing in high vacuum

    - Low thermal conductivity

    - Non-Corrosive

    - Food safe (FSA/FDA Approved)
