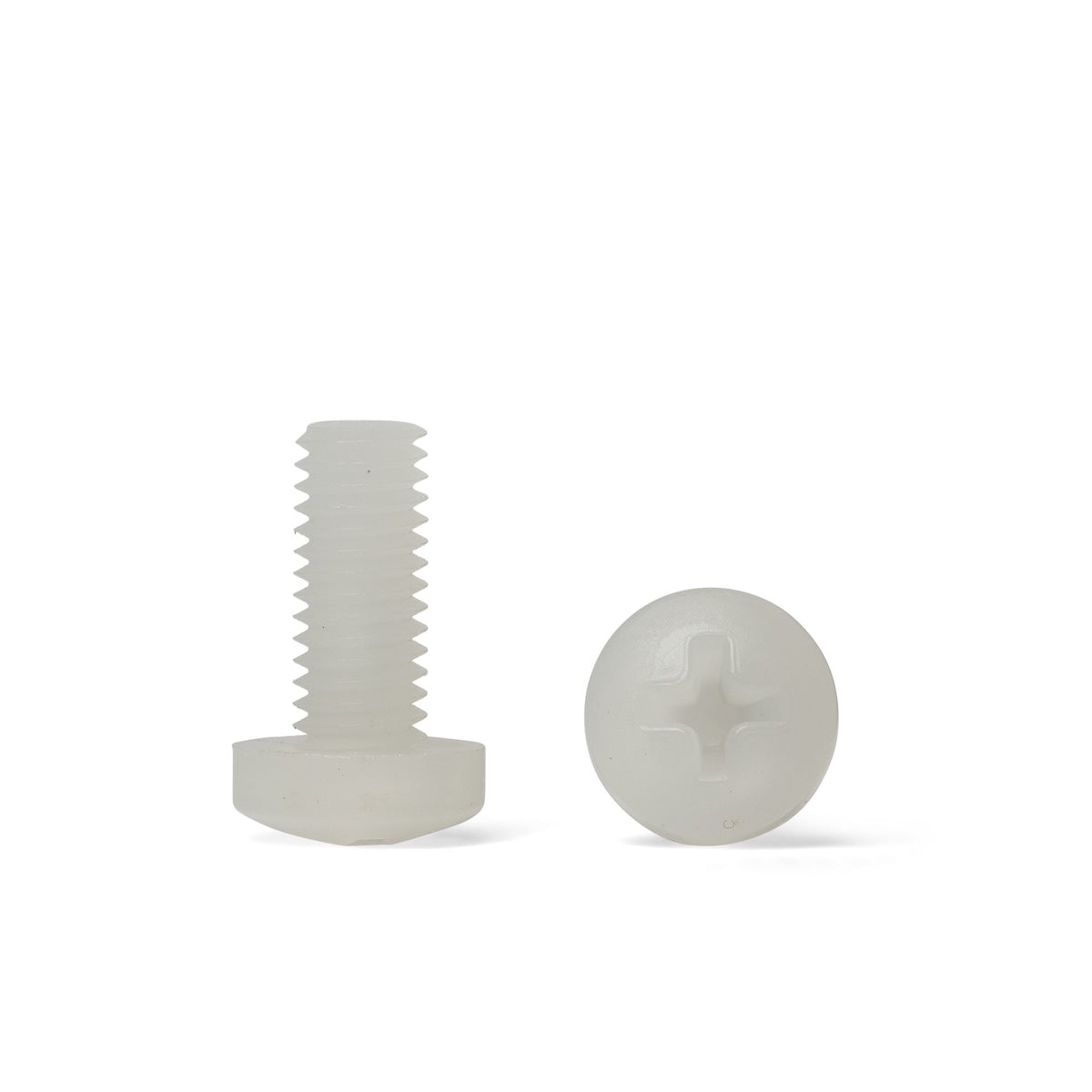

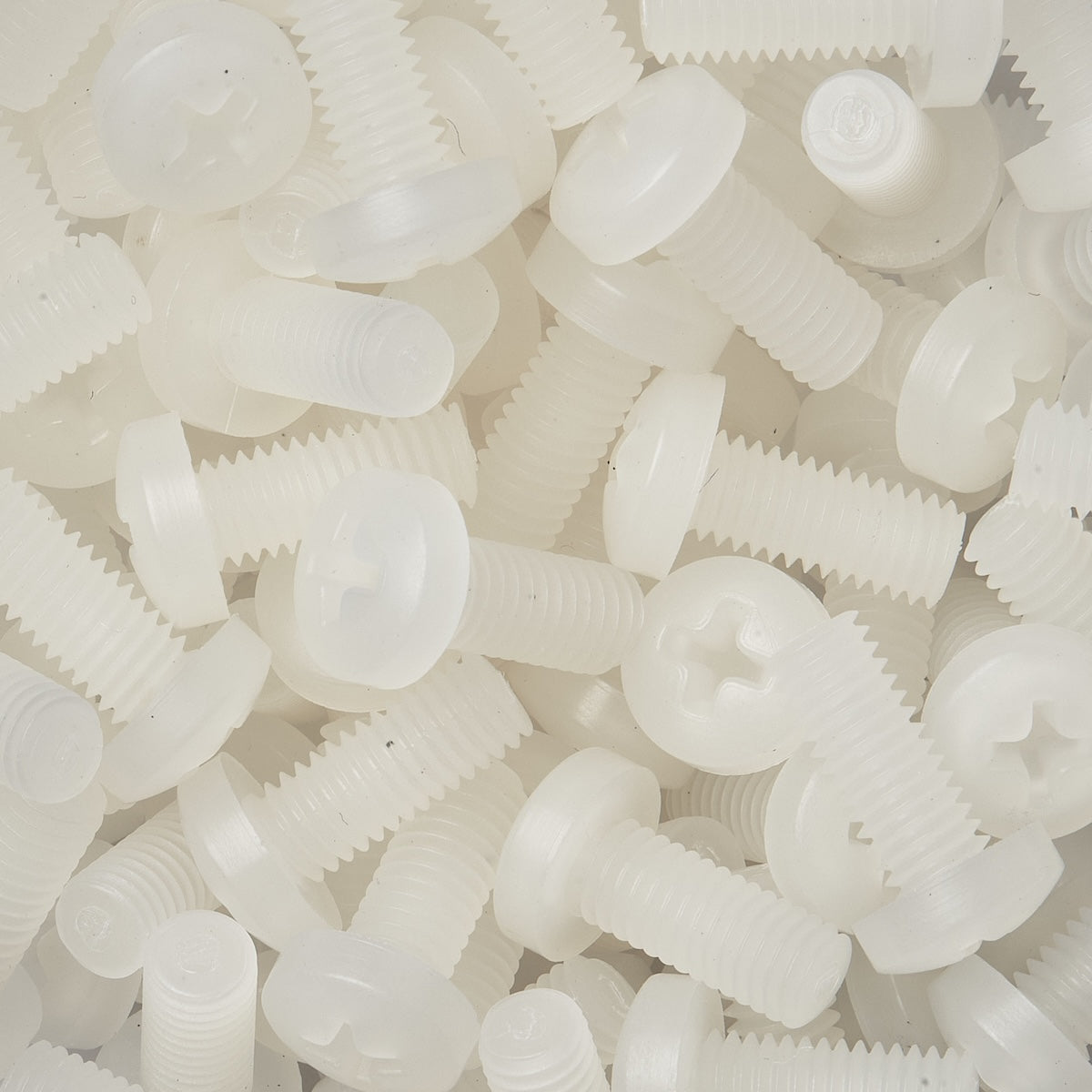

PVDF Kynar Pan Head Screws - Cross Recessed Phillips

100 in stock now, more available within 14 days.
SKU: PVFPN306
Regular price $1.19 AUD / each Ex. VAT
Regular price Sale $4.20 AUD Sale price $1.19 AUD Ex. VAT

Instant Quote Guarantee:
Submit a request for quote online by clicking the button below and it'll be delivered to your inbox within 5 mins.

Request For Quote

Need Help?
Our team are always happy to help!
Live Chat: Available from the bottom right of your screen.
Email: sales@highperformancepolymer.com
Phone: +44(0)1865 684080

PVDF Kynar Pan Head Screws - Cross Recessed Phillips

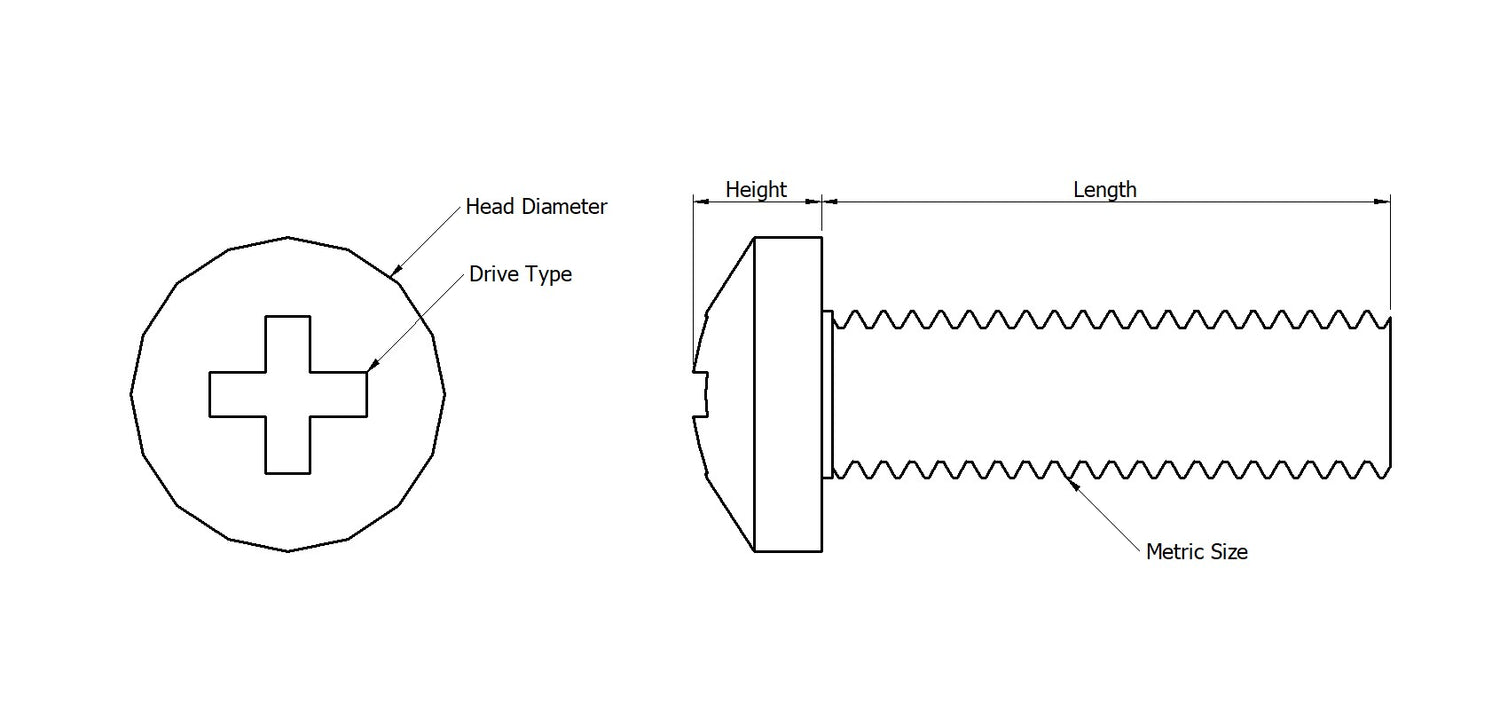

Product Drawing

Pan Head Screw Dimension Table (ISO7045/DIN7985)
M Size Pitch (mm) Head Diameter (mm) Head Height (mm)
M1.7 0.35 2.5 0.5
M2 0.4 3.5 1.3
M2.5 0.45 4.5 1.7
M2.6 0.45 4.5 1.7
M3 0.5 5.5 2.0
M4 0.7 7.0 2.6
M5 0.8 9.0 3.3
M6 1.0 10.0 3.9
M8 1.25 14.0 5.2

Dimension Table

Dimensions for PVDF Kynar Pan Head Screws - Cross Recessed Phillips in all available sizes are shown according to the product drawing above.

Polyvinylidene fluoride (PVDF) Datasheet

Follow the link below to view our PVDF data sheet. This includes properties such as mechanical, electrical, thermal and chemical resistance.

Download PDF

PVDF Key Properties

  • Exceptional chemical resistance- PVDF is not affected by most chemicals, for further info please see our datasheet below.

    Low Water absorption rates - 0.030% at 23˚c - Great for exterior use.

    Temperature resistance - 150˚C continuous use.

    Flame resistance - UL94 - V0.

  • - Ultra low weight

    - Abrasion resistance

    - Hydrolysis resistance

    - Exceptional insulation properties

  • - Non-Magnetic

    - Low thermal conductivity

    - Non-Corrosive

    - High Purity

ISO 9001 Certified

Certified through Quality Veritas. High Performance Polymer conforms to the ISO9001 quality management system. Certificates available on request.

Certificate Of Conformity

Product certificate of conformity available on request, confirming the product manufacturing standard and material.

Material Certificates

Full material traceability and certification confirming the material data and raw material batch number, which can be traced back to the manufacturer.
