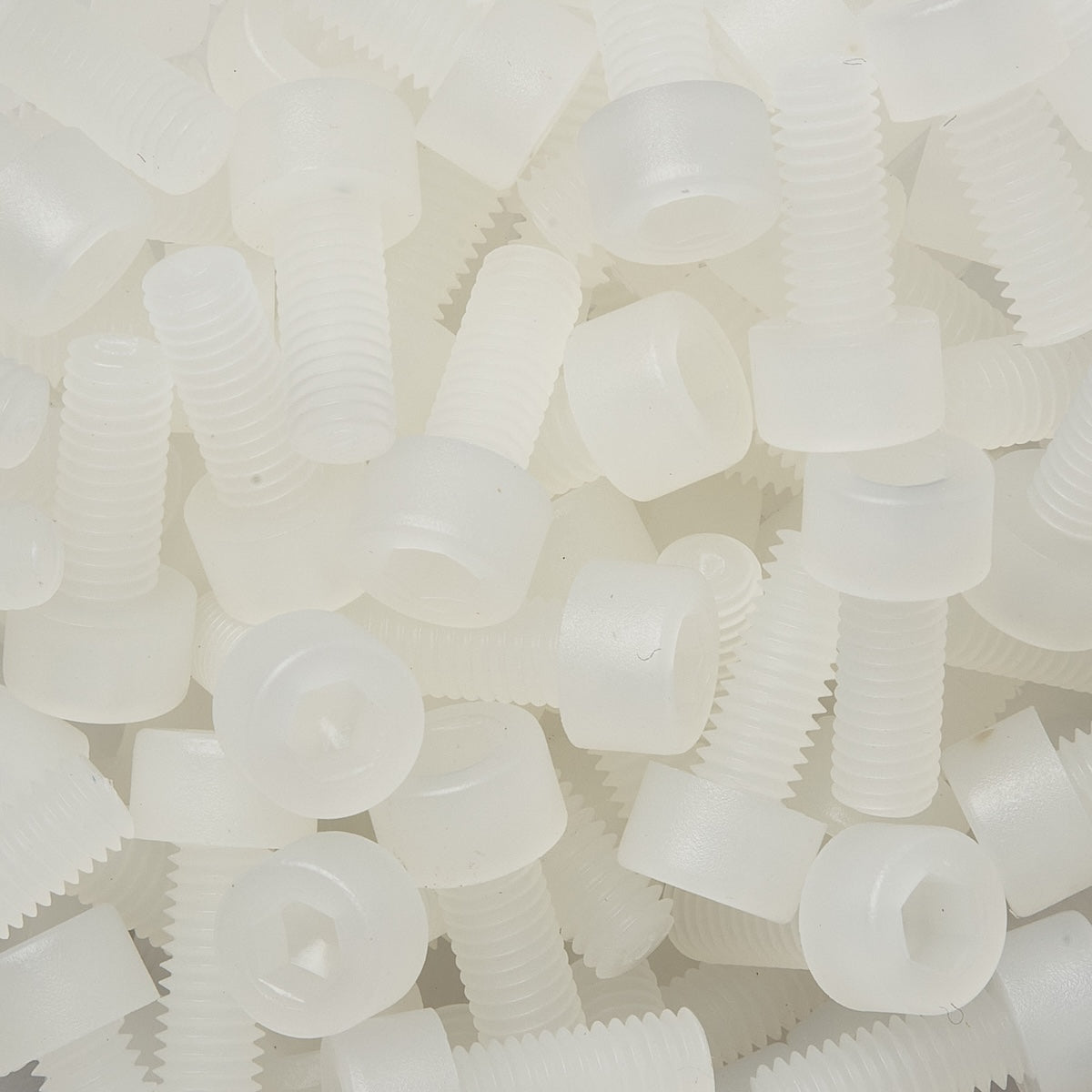

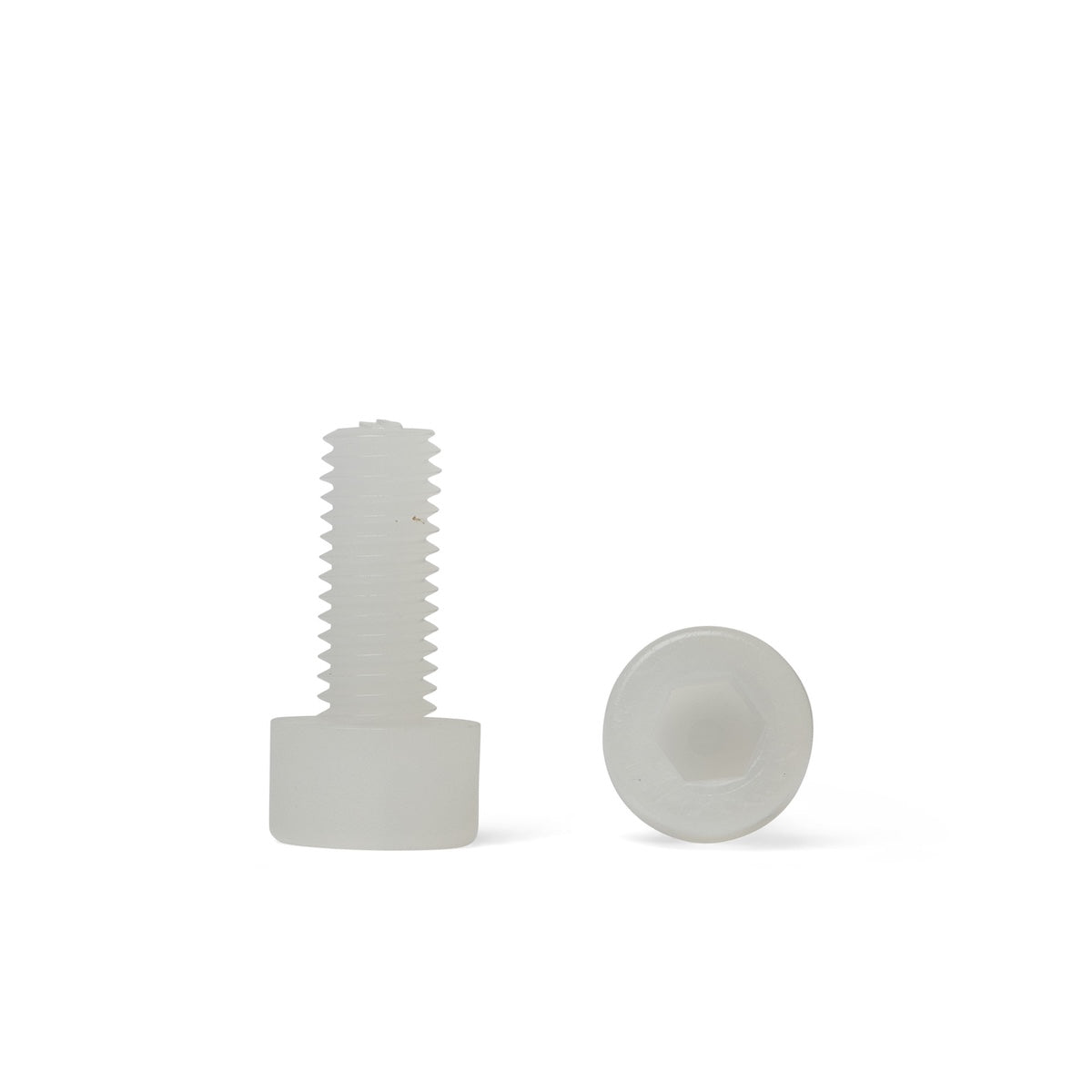

PVDF Kynar Hex Socket-Cylinder Head Cap Screw

Available in 21 days if you order today.
SKU: PVFSH305
Regular price $1.38 AUD / each Ex. VAT
Regular price Sale $4.88 AUD Sale price $1.38 AUD Ex. VAT

Instant Quote Guarantee:
Submit a request for quote online by clicking the button below and it'll be delivered to your inbox within 5 mins.

Request For Quote

Need Help?
Our team are always happy to help!
Live Chat: Available from the bottom right of your screen.
Email: sales@highperformancepolymer.com
Phone: +44(0)1865 684080

PVDF Kynar Hex Socket-Cylinder Head Cap Screw

Product Drawing

Socket Head Cap Screw Dimension Table (ISO4762/DIN912)
M Size Pitch (mm) Head Diameter (mm) Head Height (mm) Drive Size (mm)
M1.6 0.35 3.0 1.6 1.5
M2 0.40 3.8 2.0 1.5
M2.5 0.45 4.5 2.5 2.0
M3 0.50 5.5 3.0 2.5
M4 0.70 7.0 4.0 3.0
M5 0.80 8.5 5.0 4.0
M6 1.00 10.0 6.0 5.0
M8 1.25 13.0 8.0 6.0
M10 1.50 16.0 10.0 8.0
M12 1.75 18.0 12.0 10.0
M14 2.00 21.0 14.0 12.0
M16 2.00 24.0 16.0 14.0

Dimension Table

Dimensions for PVDF Kynar Hex Socket-Cylinder Head Cap Screw in all available sizes are shown according to the product drawing above.

Polyvinylidene fluoride (PVDF) Datasheet

Follow the link below to view our PVDF data sheet. This includes properties such as mechanical, electrical, thermal and chemical resistance.

Download PDF

PVDF Key Properties

  • Exceptional chemical resistance- PVDF is not affected by most chemicals, for further info please see our datasheet below.

    Low Water absorption rates - 0.030% at 23˚c - Great for exterior use.

    Temperature resistance - 150˚C continuous use.

    Flame resistance - UL94 - V0.

  • - Ultra low weight

    - Abrasion resistance

    - Hydrolysis resistance

    - Exceptional insulation properties

  • - Non-Magnetic

    - Low thermal conductivity

    - Non-Corrosive

    - High Purity
