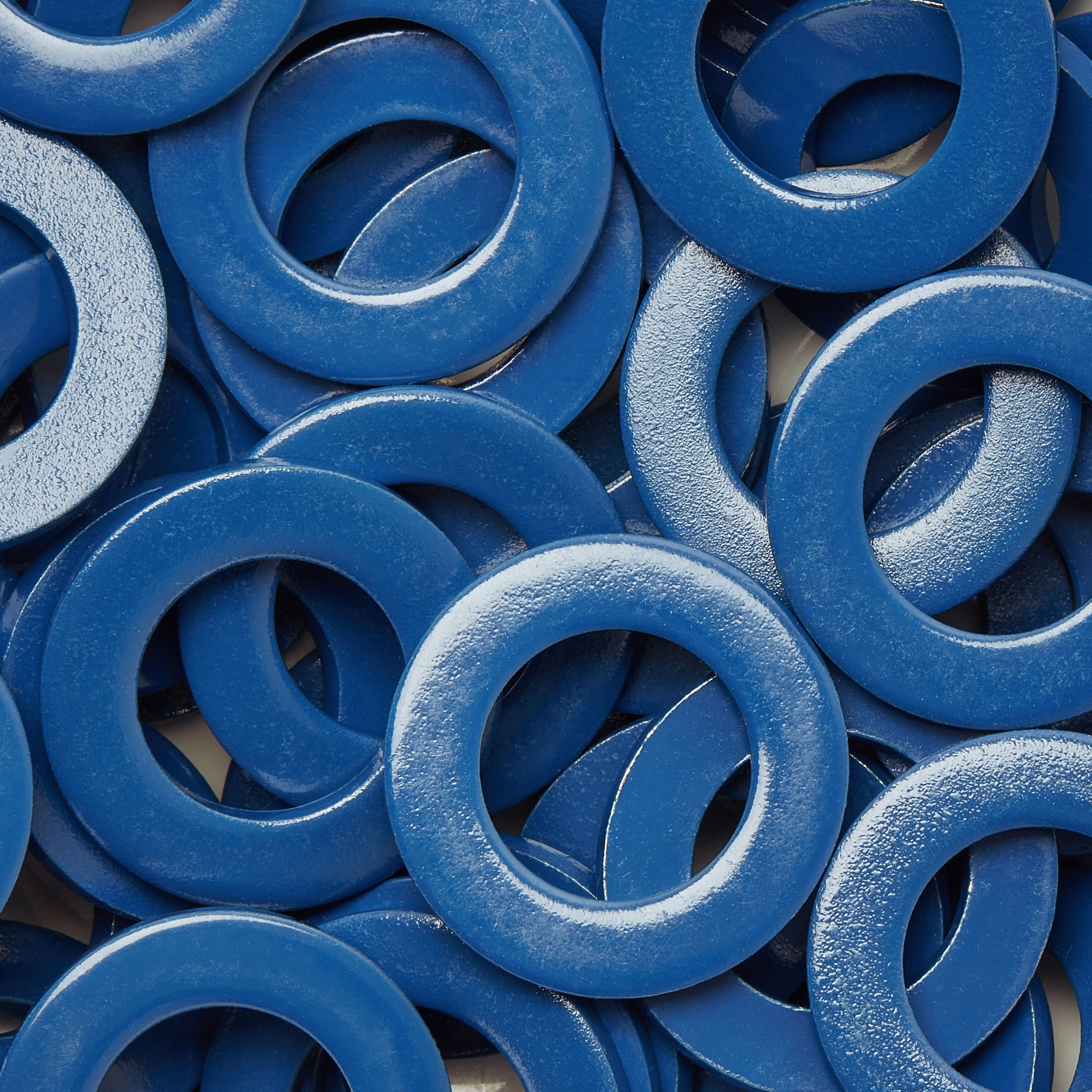

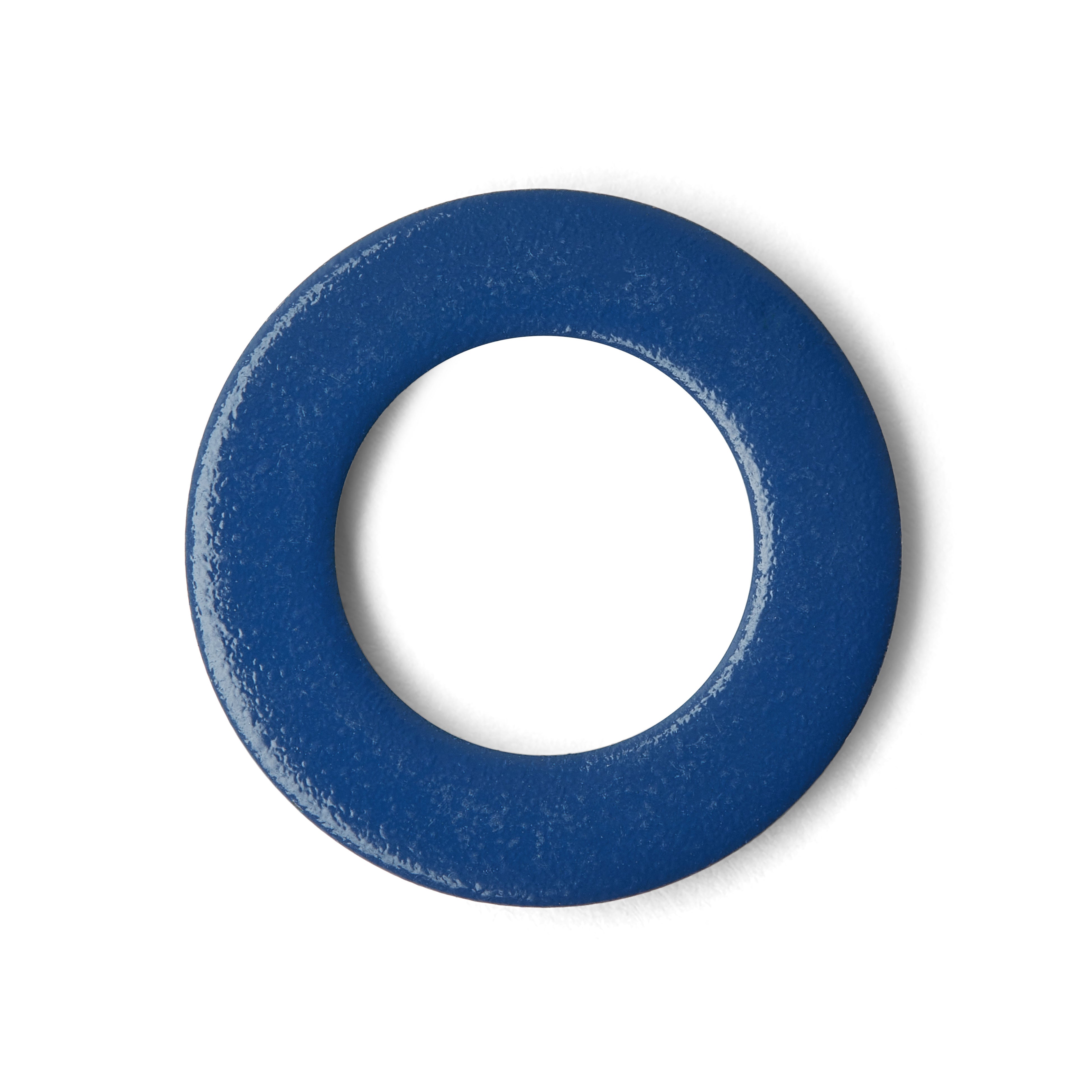

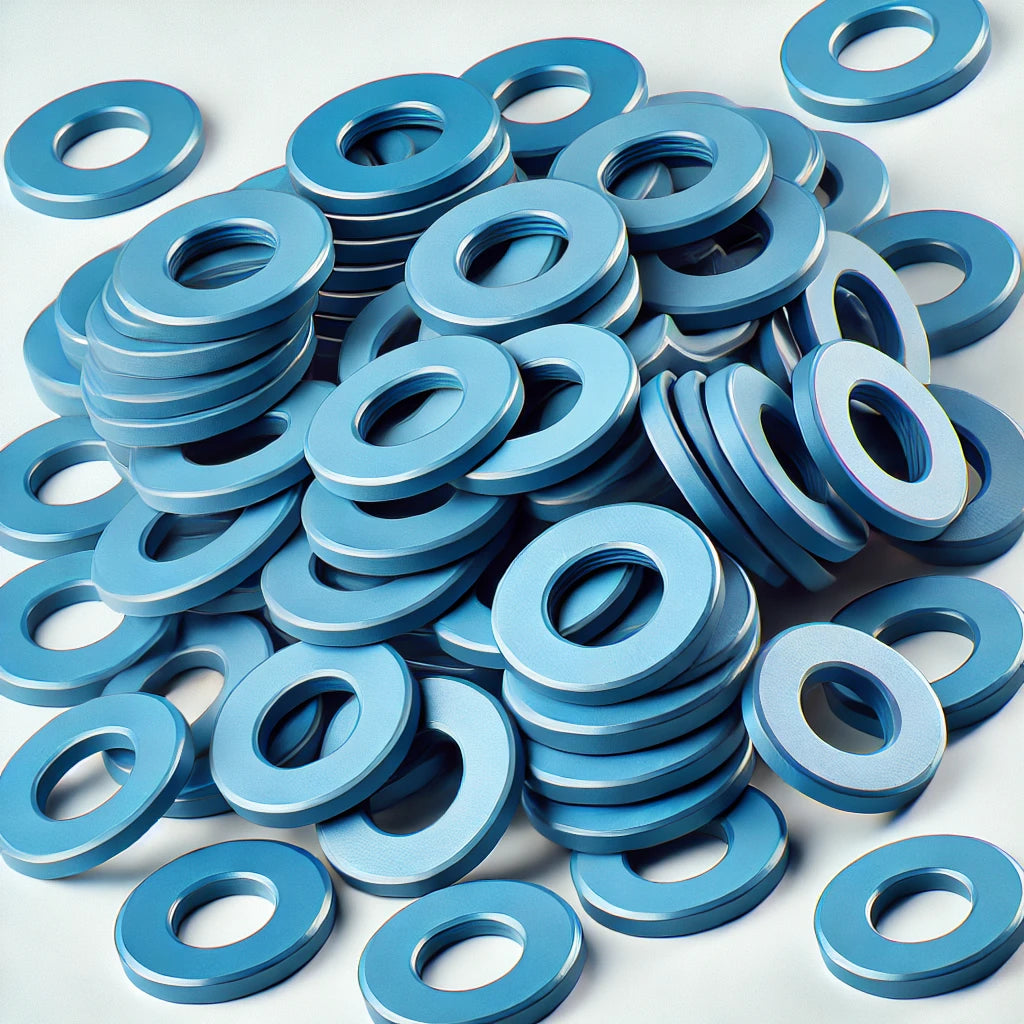

PTFE Coated Teflon Stainless Steel Flat Washers Blue - High Performance Polymer-Plastic Fastener Components

PTFE Coated Teflon Stainless Steel Flat Washers Blue - DIN 125 A

Name: PTFE Coated Teflon Stainless Steel Flat Washers Blue - DIN 125 A
Brand: High Performance Polymer
SKU: PFECWAM5
Price: 0.74 AUD
Availability: InStock

1000 in stock now, more available within 14 days.

SKU: PFECWAM5

$0.74 AUD / each Ex. VAT

Sale ~~$4.27 AUD~~ $0.74 AUD Ex. VAT

Product variants

Instant Quote Guarantee:
Submit a request for quote online by clicking the button below and it'll be delivered to your inbox within 5 mins.

Request For Quote

Need Help?
Our team are always happy to help!
Live Chat: Available from the bottom right of your screen.
Email: sales@highperformancepolymer.com
Phone: +44(0)1865 684080

PTFE (Polytetrafluoroethylene) coated stainless steel flat washers are crucial components used to distribute load, prevent surface damage, and provide insulation in various applications. These washers are made of stainless steel and coated with a layer of PTFE, offering a range of advantages that make them suitable for diverse industrial uses. Here's an in-depth look at PTFE coated stainless steel flat washers, their benefits, applications, and available sizes.

PTFE Datasheet available below.

If further information is required, please contact us.

What are PTFE Flat Washers?

Advantages of PTFE Coated Stainless Steel Flat Washers:

Corrosion Resistance: Stainless steel washers inherently possess excellent corrosion resistance, and the PTFE coating enhances their protection against harsh environments, chemicals, and atmospheric conditions.
Non-Stick Properties: PTFE's non-stick nature reduces the risk of galling and sticking, allowing for smoother assembly and disassembly.
Low Friction: The PTFE coating reduces friction between the washer and mating surfaces, resulting in easier tightening and less potential damage to the substrate.
Chemical Inertness: PTFE coated stainless steel flat washers exhibit high chemical inertness, making them ideal for use in aggressive chemical environments.
Temperature Range: PTFE can withstand a broad temperature range, providing stability and reliability in both high-temperature and cryogenic applications.
Electrical Insulation: PTFE coated washers offer electrical insulation properties, making them suitable for electrical and electronic applications.

Uses of PTFE Coated Stainless Steel Flat Washers:

Food and Beverage Industry: PTFE coated stainless steel flat washers are extensively used in the food and beverage industry, where hygiene, corrosion resistance, and non-contamination are essential.
Chemical Processing: These washers find applications in chemical plants and laboratories where exposure to corrosive chemicals is common.
Marine and Offshore: PTFE coated flat washers are highly resistant to saltwater, making them suitable for marine and offshore applications, including shipbuilding and marine equipment.
Aerospace: The aerospace industry benefits from PTFE coated flat washers in components requiring corrosion resistance and low friction, such as aircraft assembly and maintenance.
Pharmaceutical: PTFE coated stainless steel washers are employed in pharmaceutical processing equipment due to their hygienic and non-reactive nature.
Oil and Gas: In the oil and gas industry, PTFE coated washers are used in equipment and pipelines to withstand corrosive fluids and high-pressure environments.
Electronics and Electrical: PTFE coated stainless steel flat washers are employed in electrical and electronic equipment where electrical insulation and non-conductivity are vital.

Sizes of PTFE Coated Stainless Steel Flat Washers:

PTFE coated stainless steel flat washers are available in various sizes to suit different applications. The most common sizes include M3, M4, M5, M6, M8, M10, M12, and M16. The washers are available in different inner and outer diameters to accommodate various bolt and screw sizes.

Selecting the appropriate size of PTFE coated stainless steel flat washer depends on factors such as the specific application, the corresponding bolt or screw size, load requirements, and environmental conditions. Ensuring that the washer size matches the mating fastener is crucial for proper load distribution and optimal performance.

In conclusion, PTFE coated stainless steel flat washers offer numerous advantages, including corrosion resistance, non-stick properties, low friction, chemical inertness, wide temperature range suitability, and electrical insulation. These qualities make them well-suited for use in various industries, including food and beverage, chemical processing, marine, aerospace, pharmaceutical, oil and gas, electronics, and electrical. Available in different sizes and configurations, PTFE coated stainless steel flat washers can be customized to specific application requirements, ensuring reliable and long-lasting performance in demanding environments.

Volume Discount Available

Volume discount is available on this product. Log in to our B2B portal using the link below to order online or request a quotation.

View Discounts

PTFE Coated Teflon Stainless Steel Flat Washers Blue - DIN 125 A

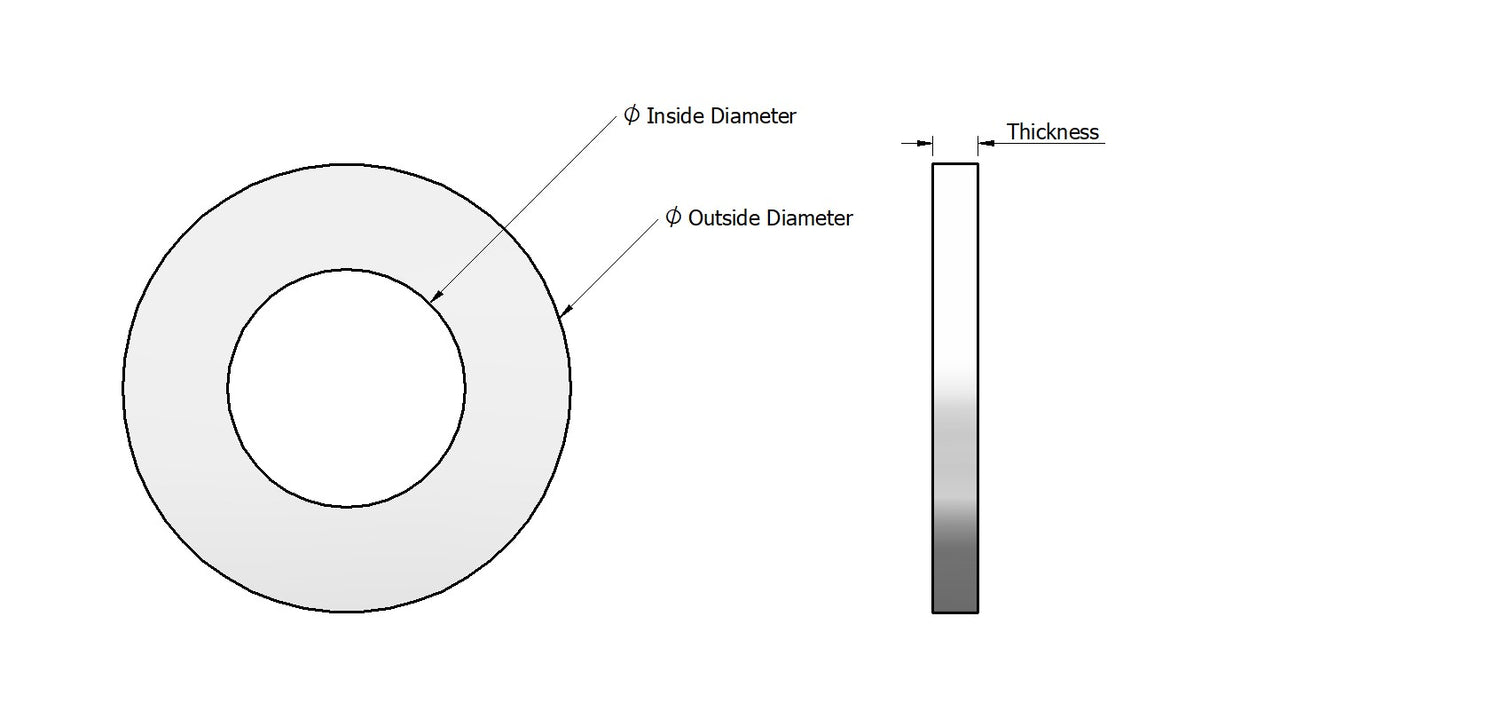

Product Drawing

PTFE Coated Teflon Stainless Steel Flat Washers Blue
M Size	Inside Diameter (mm)	Outside Diameter (mm)	Thickness (mm)
M5	5.3	10.0	1.0
M6	6.4	12.5	1.6
M8	8.4	17.0	1.6
M10	10.5	21.0	2.0
M12	13.0	24.0	2.5
M14	15.0	28.0	2.5
M16	17.0	30.0	3.0
M18	19.0	34.0	3.0
M20	21.0	37.0	3.0
M22	23.0	39.0	3.0
M24	25.0	44.0	4.0

Dimension Table

Dimensions for PTFE Coated Teflon Stainless Steel Flat Washers Blue - DIN 125 A in all available sizes are shown according to the product drawing above.

PTFE Coated A2 Stainless Steel Datasheet

Follow the link below to view our PTFE Coated data sheet. This includes properties such as mechanical, electrical, thermal and chemical resistance.

Download PDF

PTFE Coated Key Properties

Corrosion Resistance: Provides excellent protection against rust, oxidation, and environmental degradation, making them suitable for use in harsh or corrosive environments.

Chemical Inertness: Resists a wide range of chemicals, including acids, bases, solvents, and corrosive substances, without degrading or reacting.

Low Friction: Offers a low coefficient of friction, which reduces friction between surfaces, minimizes wear, and enhances the longevity of both the fastener and the mating parts.

Temperature Stability: Maintains its properties across a broad temperature range, from -100°C to +260°C, allowing it to perform well in extreme temperature conditions.
Non-Stick Properties: Prevents substances from adhering to the surface, making it easy to clean and maintain, and reducing the risk of contamination in sensitive applications.

Electrical Insulation: Acts as a good electrical insulator, providing resistance to electrical conductivity and enhancing safety in electrical and electronic applications.

Biocompatibility: Generally biocompatible and inert to biological tissues, making it suitable for use in medical and pharmaceutical applications where contact with biological systems is required.

Durability: Enhances the mechanical strength and durability of the fastener, providing long-lasting performance even under challenging conditions.

Smooth Surface Finish: Provides a smooth, even coating that improves the aesthetic appearance and performance of the fastener.
Reduced Torque Requirements: The low friction surface reduces the torque needed for installation and removal, facilitating easier handling and assembly.

Weather Resistance: Withstands exposure to UV radiation, moisture, and other environmental factors without degrading, making it ideal for outdoor and marine applications.

Chemical Resistance: Enhances resistance to a broad spectrum of aggressive chemicals beyond what the base material alone can handle.

Enhanced Performance in Sliding and Rotating Applications: Ideal for applications involving sliding or rotating parts due to its low friction and non-stick characteristics.
