Polycarbonate Countersunk Dome Screws - Cross Recessed Phillips - DIN 965

Manufactured to order.
SKU: PCCKD305
Regular price $0.08 - $0.13 AUD / each Ex. VAT
Regular price Sale $0.23 AUD Sale price $0.08 - $0.13 AUD Ex. VAT

Volume Discounts Available:

1 pc $0.13
500 pcs $0.12
1000 pcs $0.12
2500 pcs $0.10
5000 pcs $0.10
10000 pcs $0.09
20000 pcs $0.08
30000+ pcs Contact us
Show more Show less
Want it by XYZ?
Want it by XYZ?

Need Help?
Our team are always happy to help!
Live Chat: Available from the bottom left of your screen.
Email: sales@highperformancepolymer.com
Phone: +44(0)1865 684080

Instant Quote:
Submit a request for quote online by clicking the button below and a PDF quotation will be delivered to your inbox within 5 mins.

Request a Quote

Material: PC

Measurement System: Metric

Drive Type: Cross Recessed/Phillips

Colour: Transparent/Natural

Continuous use temperature: 115°C/239°F

Flammability: UL94 V-2

Polycarbonate Countersunk Dome Screws - Cross Recessed Phillips - DIN 965 conform to the following Standards/Norms:

ISO 7046

DIN 965

CSN 021152

PN 82208

UNI 7688

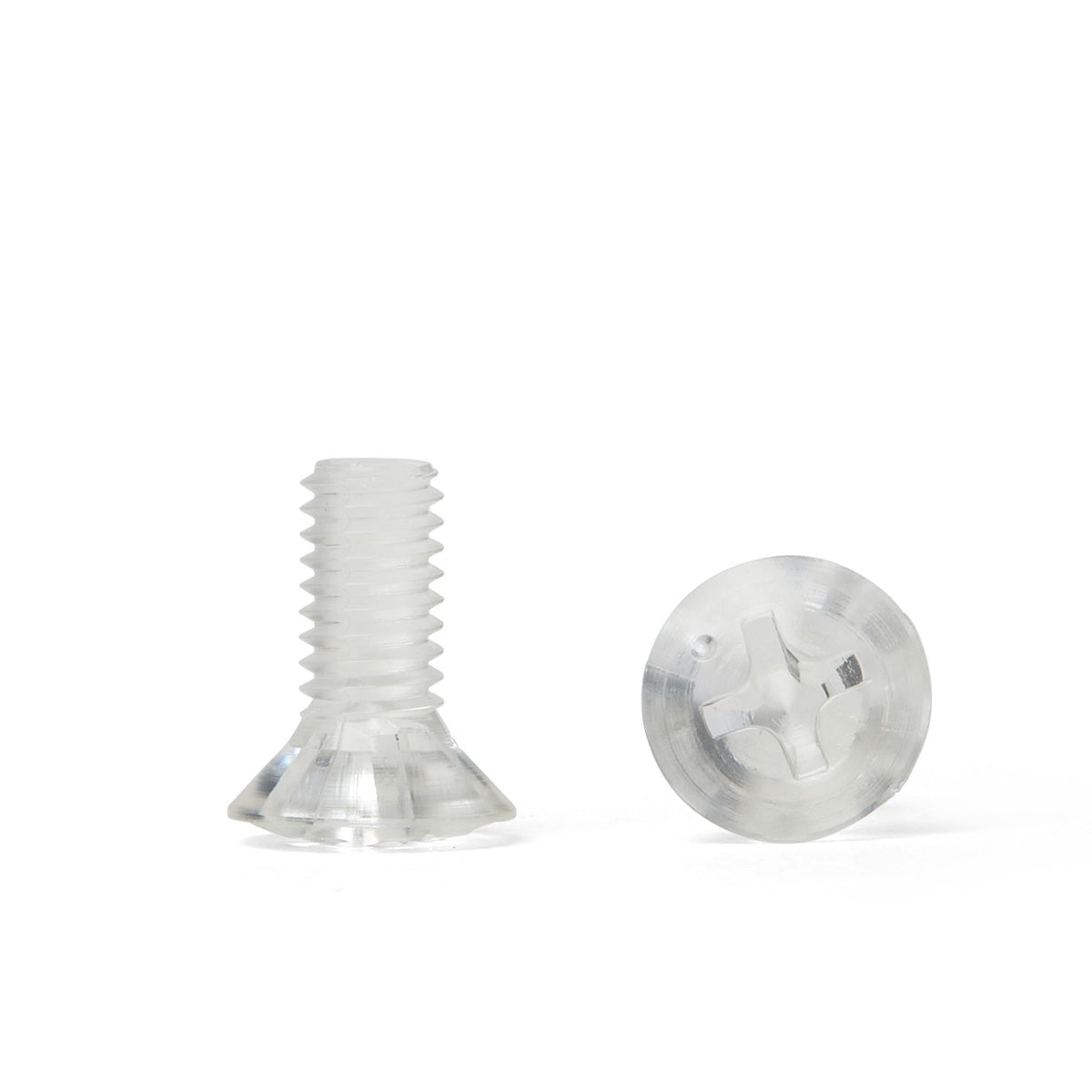

Polycarbonate (PC) countersunk Dome head screws have the same dimensional specification as our standard PC Countersunk screws; however they feature a protruding dome similar to that of our pan head screws.

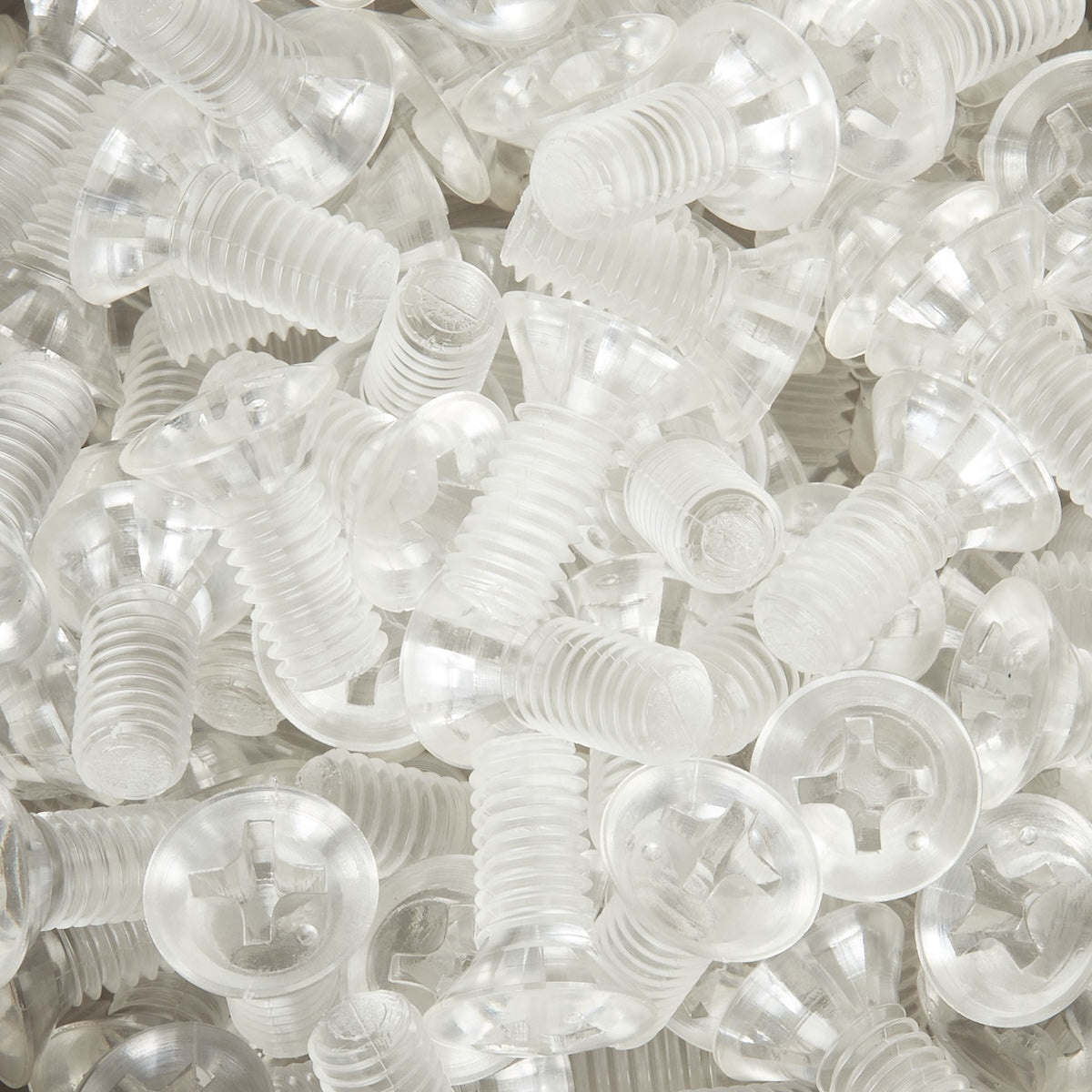

Our Domed PC countersunk screws are transparent in colour.

HPP’s Countersunk screws are manufactured with a standard Phillips cross head drive type (ranging from drive #1 to #3), this allows for more than adequate torque for the fastener specification.

The standard head angle for all our domed countersunk screws is 90 Degrees.

Our PC screws are commonly used in general applications due to low unit costs, high impact strength and non-corrosive properties.

Certificate of conformity available on request.

Please find a link to our data sheet below.

What are Polycarbonate Countersunk Dome Screws?

Polycarbonate is a type of plastic that is known for its strength, transparency, and impact resistance. It is often used in applications where these properties are desired, such as in the construction of windows, eyewear, and electronic components.

Countersunk screws are screws with a conical head that is tapered and flat, allowing it to be sunk into the surface of the material it is fastened to. They are used in applications where a flush finish is desired, as the head of the screw sits flush with the surface of the material.

Dome screws are a type of countersunk screw with a round, dome-shaped head. They are used in applications where a low profile and smooth finish are desired.

Polycarbonate countersunk dome screws are countersunk dome screws made of polycarbonate material. They are used in a variety of applications where the combination of the strength, transparency, and impact resistance of polycarbonate with the convenience of a countersunk dome screw is desirable. They are typically used in applications where these properties are necessary, such as in the construction of windows, eyewear, and electronic components.

The PC data sheet is available as a PDF to download below.

Return components within 90 days for a full refund. Please see returns terms and conditions for further information.

Polycarbonate Countersunk Dome Screws - Cross Recessed Phillips - DIN 965

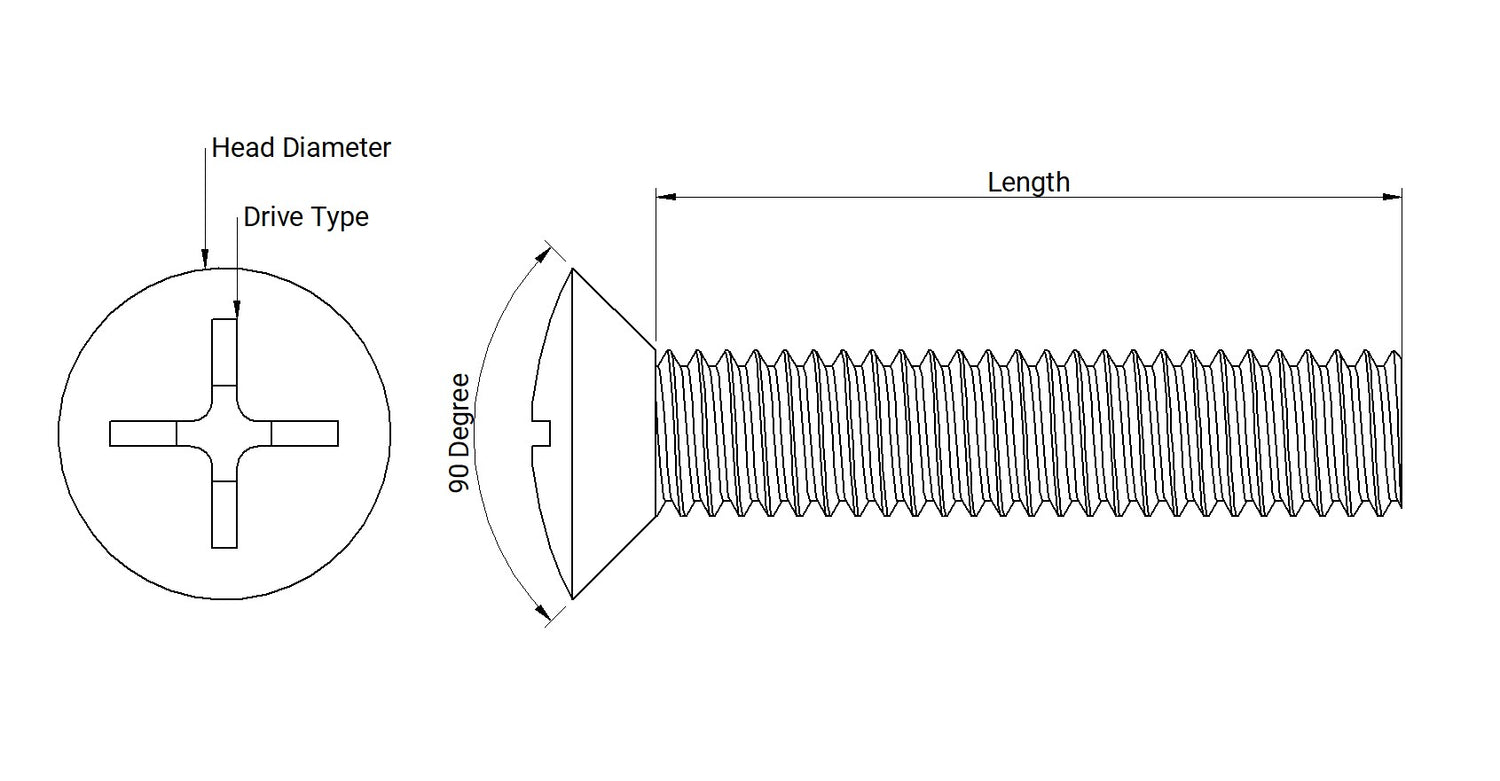

Product Drawing

Countersunk/Flathead Screw Dimension Table (ISO 7046/DIN 965)
M Size Pitch (mm) Head Diameter (mm)
M2 0.4 4.0
M2.5 0.45 5.0
M2.6 0.45 5.2
M3 0.5 6.0
M4 0.7 8.0
M5 0.8 10.0
M6 1.0 12.0
M8 1.25 16.0

Dimension Table

Dimensions for Polycarbonate Countersunk Dome Screws - Cross Recessed Phillips - DIN 965 in all available sizes are shown according to the product drawing above.

Key Polycarbonate (PC) Properties

Polycarbonate (PC) Datasheet

Follow the link below to view our PC data sheet. This includes properties such as mechanical, electrical, thermal and chemical resistance.

Download PDF

Custom Manufacturing

Can't find a component?

We can manufacture components to your specification in any of our performance polymer materials. Click on the link, fill out a short form and you'll receive a competitive, no obligation quote within 24 hours.

Request a Quote

PC Key Properties

  • Exceptional impact resistance - Ideal for general applications.

    Ultra low cost - In comparison with other engineered polymer materials.

    Electrical insulation properties - Great for fastening electrical components.

    Good weight to strength ratio - Specific gravity (1.20).

  • - Operation temperature up to 115°C

    - Low weight Flame resistance (UL94 V-2)

    - Abrasion resistance

    - Hydrolysis resistance

  • - Non-Magnetic

    - Low thermal conductivity

    - Non-Corrosive

    - Shock resistance

ISO 9001 Certified

Certified through Quality Veritas. High Performance Polymer conforms to the ISO9001 quality management system. Certificates available on request.

Certificate Of Conformity

Product certificate of conformity available on request, confirming the product manufacturing standard and material.

Material Certificates

Full material traceability and certification confirming the material data and raw material batch number, which can be traced back to the manufacturer.
