HPP POM®

Polyacetal POM Flanged Bushings

1007 In Stock

SKU: POMF26366

$0.77 - $1.19 AUD / each Ex. VAT

Volume Discounts Available:

1 pc $1.19

500 pcs $1.13

1000 pcs $1.07

2500 pcs $0.95

5000 pcs $0.89

10000 pcs $0.83

20000 pcs $0.77

30000+ pcs Contact us

Show more Show less

Want it by XYZ?
Want it by XYZ?

Need Help?
Our team are always happy to help!
Live Chat: Available from the bottom left of your screen.
Email: sales@highperformancepolymer.com
Phone: +44(0)1865 684080

Inside Diameter	Outside Diameter (mm)	Flange Diameter (mm)	Overall Length (mm)
4	6	12	8.8
5	8	10	5.5
5	10	14	9
5.1	10	13	5.9
9.7	16	20	18
10	16	20.7	18
12.7	15	17.5	8
15.7	19.3	23	11
20	23	30	16.5
20	23	30	21.5
20	26	32	20

Dimension Table

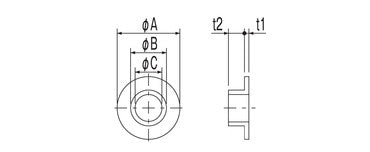

Dimensions for Polyacetal POM Flanged Bushings in all available sizes are shown according to the product drawing above.

Key Polyacetal (POM) Properties

Polyacetal (POM) Compression Springs - High Performance Polymer-Plastic Fastener Components

Polyacetal (POM) Datasheet

Follow the link below to view our POM data sheet. This includes properties such as mechanical, electrical, thermal and chemical resistance.

Download PDF

Custom Manufacturing

Can't find a component?

We can manufacture components to your specification in any of our performance polymer materials. Click on the link, fill out a short form and you'll receive a competitive, no obligation quote within 24 hours.

Request a Quote

POM Key Properties

Low Cost: Compared to other polymer components, POM is very cost effective, making it the perfect material for applications that require a high volume of components.

High stiffness and strength: POM has a high modulus of elasticity, which means it is stiff and provides good structural support. It also has good tensile strength, which makes it resistant to breaking or cracking under tension.

Low friction and wear resistance: POM has excellent wear resistance, which makes it suitable for use in applications that require sliding or rotating parts. It also has a low coefficient of friction, which means it can slide easily against other materials.
High fatigue resistance: POM has excellent fatigue resistance, which means it can withstand repeated cycles of stress without losing its mechanical properties.

Excellent dimensional stability: POM has low water absorption and is highly resistant to creep, which means it maintains its shape and size over time. It also has low thermal expansion, which means it does not expand or contract significantly with changes in temperature.

Chemical resistance: POM is highly resistant to a wide range of chemicals, including alcohols, aldehydes, esters, and many acids and bases. This makes it suitable for use in harsh environments where exposure to chemicals is a concern.
Electrical insulation properties: POM is an excellent insulator and has good dielectric strength, which makes it suitable for use in electrical applications where high insulation properties are required.
