PFA Slotted Hexagon Bolts

Available in 21 days if you order today.
SKU: PFASHB410
Regular price $5.71 AUD / each Ex. VAT

Instant Quote Guarantee:
Submit a request for quote online by clicking the button below and it'll be delivered to your inbox within 5 mins.

Request For Quote

Need Help?
Our team are always happy to help!
Live Chat: Available from the bottom right of your screen.
Email: sales@highperformancepolymer.com
Phone: +44(0)1865 684080

PFA Slotted Hexagon Bolts

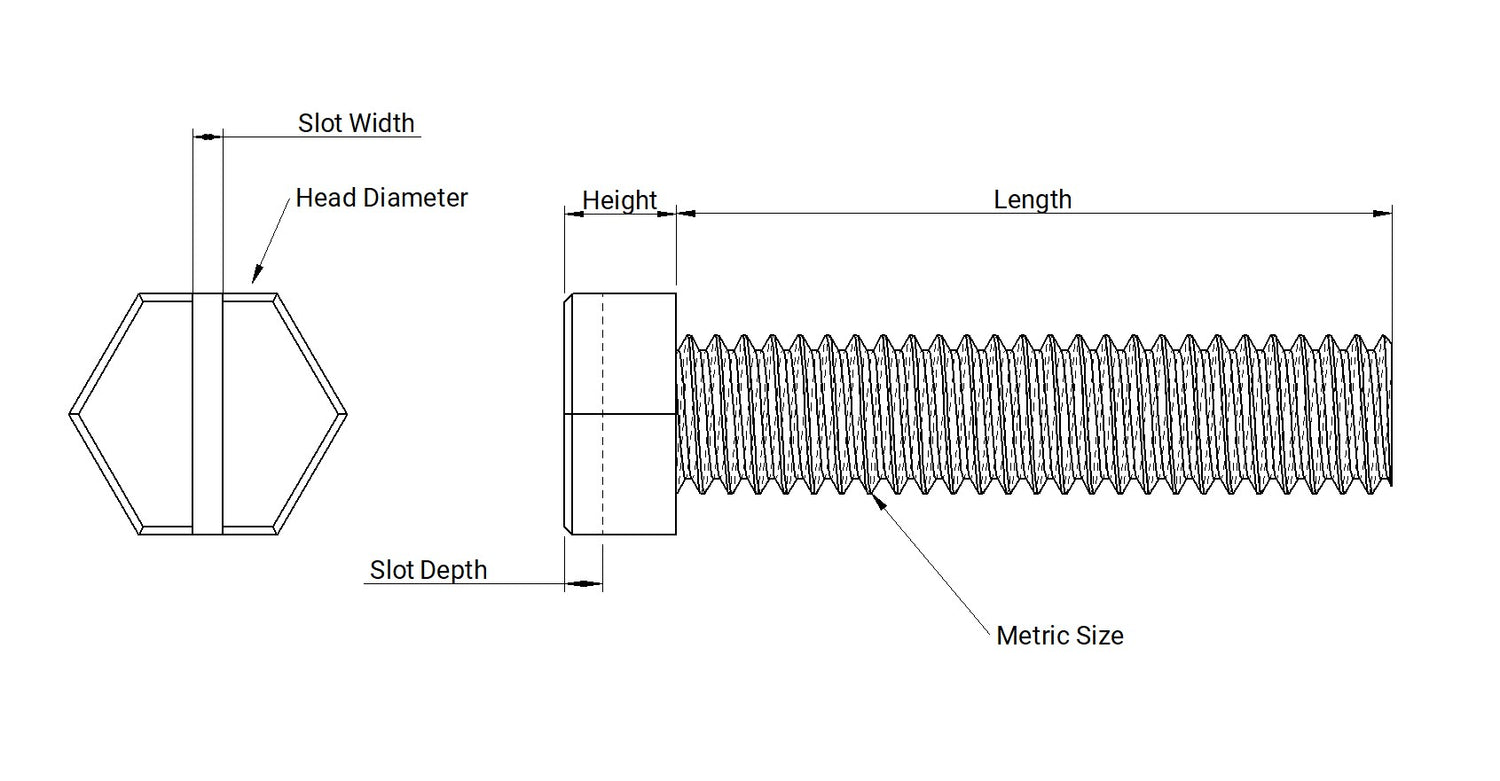

Product Drawing

Slotted Hexagon Bolt Dimension Table (ISO 24017/DIN 933 SZ)
M Size Pitch (mm) Head Width (Flat-Flat) (mm) Head Height (mm) Slot Width (mm) Slot Depth (mm)
M4 0.7 8.0 2.8 1.0 1.4
M5 0.8 10.0 3.5 1.2 1.8
M6 1.0 12.0 4.0 1.2 2.1
M8 1.25 16.0 5.5 1.6 2.8

Dimension Table

Dimensions for PFA Slotted Hexagon Bolts in all available sizes are shown according to the product drawing above.

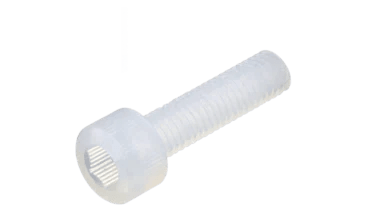

PFA Hex Socket-Cylinder Head Cap Screw - High Performance Polymer-Plastic Fastener Components

Perfluoro alkoxyalkane (PFA) Datasheet

Follow the link below to view our PFA data sheet. This includes properties such as mechanical, electrical, thermal and chemical resistance.

Download PDF

PFA Key Properties

  • Exceptional Chemical Resistance:
    PFA, or Perfluoro alkoxyalkane, boasts unparalleled chemical resistance. Its molecular structure, rich in fluorine atoms, forms a virtually impenetrable barrier against corrosive substances, including acids, bases, and solvents. This property makes PFA a top choice for fasteners and components in industries where resistance to chemical attack is paramount, such as chemical processing and semiconductor manufacturing.

  • High Temperature Stability:
    One of PFA's standout features is its ability to maintain its integrity and mechanical properties at extreme temperatures. With a continuous service temperature range of -200°C to 260°C (-328°F to 500°F), PFA excels in applications where exposure to both cryogenic conditions and high-temperature processes is common. This exceptional thermal stability ensures long-term reliability in critical environments like aerospace, pharmaceuticals, and electronics.

  • Low Friction Coefficient:
    PFA exhibits a low coefficient of friction, making it an ideal material for applications where reduced friction and smooth movement are essential. Its self-lubricating properties result in minimal wear and excellent release characteristics. Consequently, PFA finds extensive use in enhancing the efficiency and lifespan of machinery across various industries, from automotive to food processing.
