PFA Hexagon Nuts

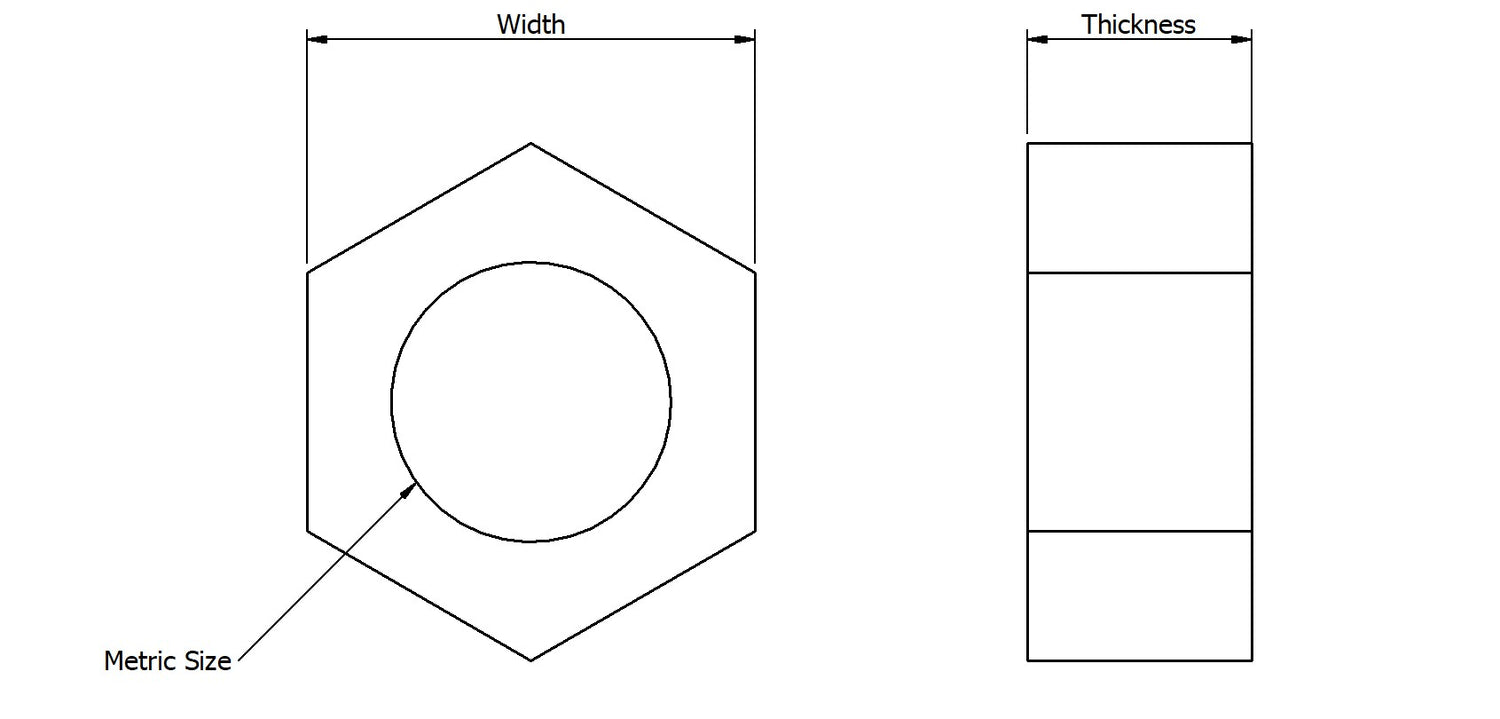

Product Drawing

Hexagon Nut Dimension Table (ISO 4032/DIN 934)
M Size Pitch (mm) Width (Flat-Flat) (mm) Thickness (mm)
M2 0.4 4.0 1.6
M2.6 0.45 5.0 2.0
M2.5 0.45 5.0 2.0
M3 0.5 5.5 2.4
M4 0.7 7.0 3.2
M5 0.8 8.0 4.0
M6 1.0 10.0 5.0
M8 1.25 13.0 6.5
M10 1.50 17.0 8.0
M12 1.75 19.0 10.0

Dimension Table

Dimensions for PFA Hexagon Nuts in all available sizes are shown according to the product drawing above.

PFA Hex Socket-Cylinder Head Cap Screw - High Performance Polymer-Plastic Fastener Components

Perfluoro alkoxyalkane (PFA) Datasheet

Follow the link below to view our PFA data sheet. This includes properties such as mechanical, electrical, thermal and chemical resistance.

Download PDF

PFA Key Properties

  • Exceptional Chemical Resistance:
    PFA, or Perfluoro alkoxyalkane, boasts unparalleled chemical resistance. Its molecular structure, rich in fluorine atoms, forms a virtually impenetrable barrier against corrosive substances, including acids, bases, and solvents. This property makes PFA a top choice for fasteners and components in industries where resistance to chemical attack is paramount, such as chemical processing and semiconductor manufacturing.

  • High Temperature Stability:
    One of PFA's standout features is its ability to maintain its integrity and mechanical properties at extreme temperatures. With a continuous service temperature range of -200°C to 260°C (-328°F to 500°F), PFA excels in applications where exposure to both cryogenic conditions and high-temperature processes is common. This exceptional thermal stability ensures long-term reliability in critical environments like aerospace, pharmaceuticals, and electronics.

  • Low Friction Coefficient:
    PFA exhibits a low coefficient of friction, making it an ideal material for applications where reduced friction and smooth movement are essential. Its self-lubricating properties result in minimal wear and excellent release characteristics. Consequently, PFA finds extensive use in enhancing the efficiency and lifespan of machinery across various industries, from automotive to food processing.
