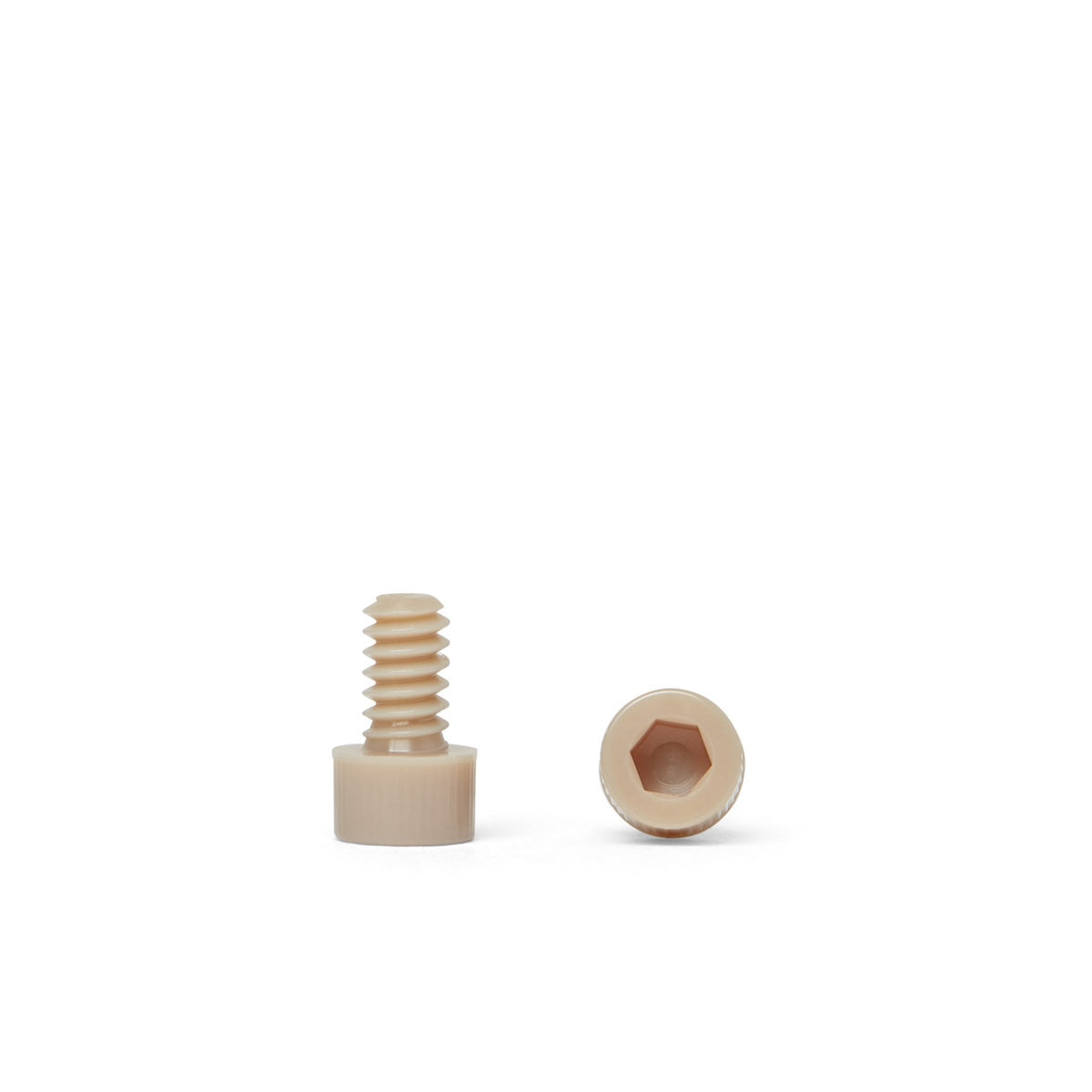

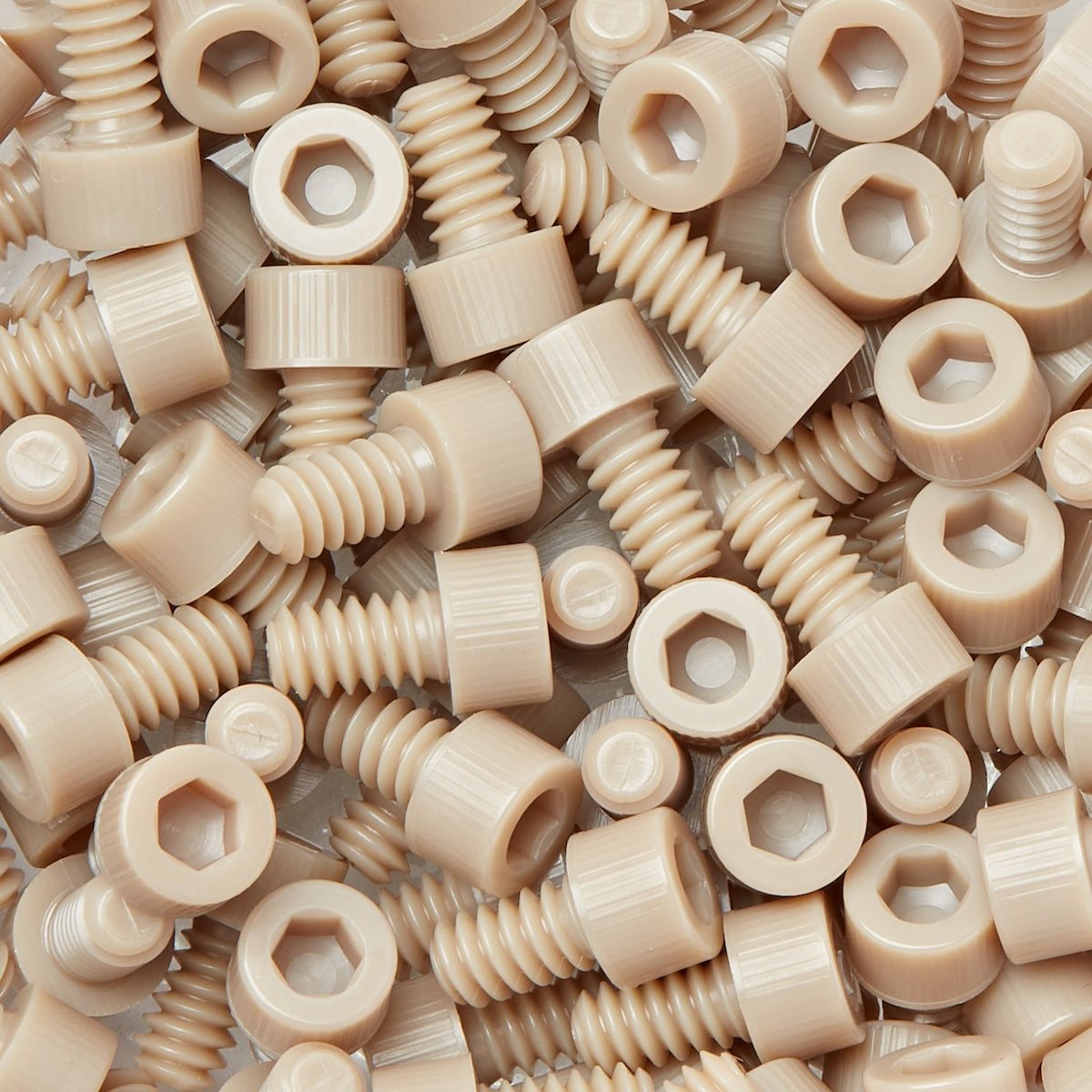

Imperial PEEK GF30 (SHCS) Socket Cap Screw - UNC (ASME B18.3)

Material: PEEK GF30

Measurement System: Imperial

Drive Type: Hex Socket

Natural

Continuous use temperature: 260°C/500°F

Flammability: UL94 V-0

Imperial PEEK GF30 (SHCS) Socket Cap Screw - UNC (ASME B18.3) conform to the following Standards/Norms:

Imperial PEEK GF30 (SHCS) Socket Cap Screws - UNC (ASME B18.3), available in thread sizes ranging from 2-56 to 1/4-20 and lengths from 3/16" to 1", are precision-engineered fasteners made from Polyether Ether Ketone (PEEK) reinforced with 30% glass fibers. This material combination offers exceptional mechanical strength and rigidity, making these screws ideal for high-stress applications. The socket cap design allows for secure fastening with a clean, low-profile finish. PEEK GF30 is renowned for its high tensile strength, excellent thermal stability, and outstanding chemical resistance, ensuring reliable performance in demanding environments. These screws are suitable for a wide range of industrial applications where durability and longevity are crucial.

Imperial Thread Size – 2-56, 4-40, 6-32, 8-32, 10-32, ¼-20

Length (In) – 3/16”, ¼”, 5/16’, 3/8”, ½”, 5/8”, ¾”, 7/8”, 1”

Advantages of Using Imperial PEEK GF30 (SHCS) Socket Cap Screw - UNC (ASME B18.3):

High Mechanical Strength: The 30% glass fiber reinforcement significantly enhances the tensile and compressive strength of the screws, providing robust and reliable fastening in critical applications.

Thermal Stability: PEEK GF30 maintains its structural integrity and mechanical properties over a wide temperature range, making these screws suitable for both high-temperature and cryogenic environments.

Chemical Resistance: The material is resistant to a broad spectrum of chemicals, including acids, bases, and solvents, ensuring durability in corrosive environments.

Electrical Insulation: PEEK GF30 provides excellent electrical insulating properties, making these screws ideal for use in electronic and electrical applications.

Lightweight: Despite their high strength, PEEK GF30 screws are lightweight, reducing the overall weight of assemblies and making them easier to handle.

Corrosion Resistance: PEEK GF30 is naturally resistant to corrosion, ensuring long-lasting performance even in harsh conditions.

Specific Applications of Imperial PEEK GF30 (SHCS) Socket Cap Screw - UNC (ASME B18.3):

Aerospace:

Used in aircraft and spacecraft systems where lightweight, high-strength fasteners are essential for performance and safety.

Suitable for environments with extreme temperatures and exposure to radiation, such as satellites and space exploration equipment.

Chemical Processing:

Applied in securing components in chemical processing plants, where resistance to aggressive chemicals and high temperatures is crucial.

Ideal for use in reactors, pumps, and valves, providing reliable sealing and fastening.

Electronics and Electrical Equipment:

Used in the assembly of electronic devices and enclosures, where the screws' electrical insulation properties are beneficial.

Suitable for securing circuit boards, connectors, and sensitive electronic components.

Medical Devices:

Utilised in medical instruments and equipment, taking advantage of PEEK GF30's biocompatibility and resistance to repeated sterilisation processes.

Ideal for securing components in diagnostic and analytical equipment where precision and reliability are critical.

Automotive Industry:

Used in automotive applications, particularly in engine compartments and electronic systems, where high heat and chemical resistance are required.

Applied in the assembly of hybrid and electric vehicles, offering a lightweight, durable fastening solution.

Imperial PEEK GF30 (SHCS) Socket Cap Screws - UNC (ASME B18.3), available in thread sizes from 2-56 to 1/4-20 and lengths from 3/16" to 1", are made from 30% glass fiber-reinforced Polyether Ether Ketone (PEEK). These screws offer exceptional mechanical strength, thermal stability, and chemical resistance, making them ideal for a wide range of demanding applications across aerospace, chemical processing, electronics, medical devices, and automotive industries. The combination of durability, lightweight nature, and resistance to harsh conditions ensures that PEEK GF30 socket cap screws provide reliable and long-lasting performance in critical environments.

The PEEK GF30 data sheet is available as a PDF to download below.
