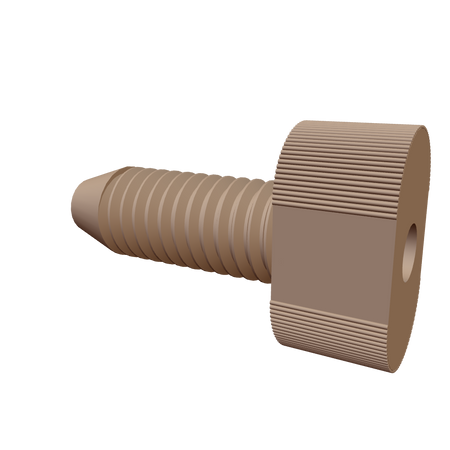

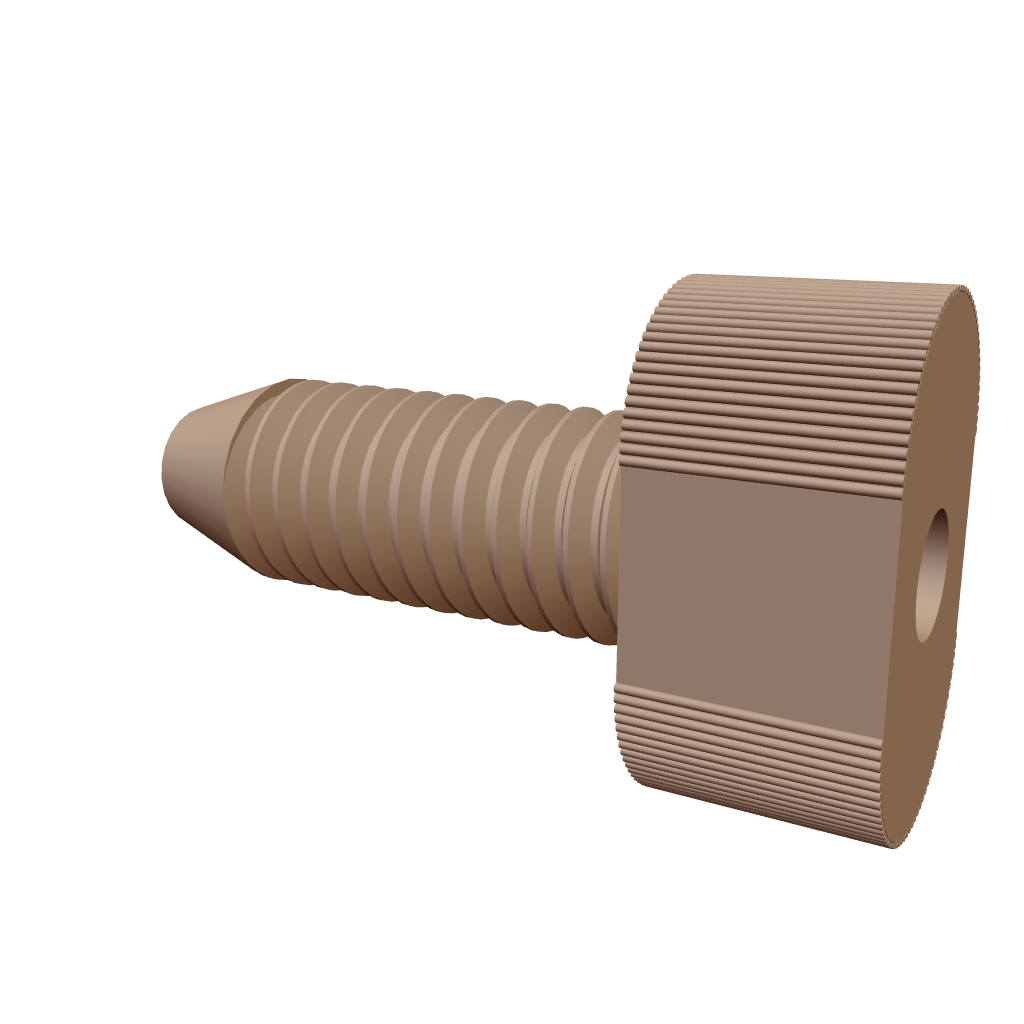

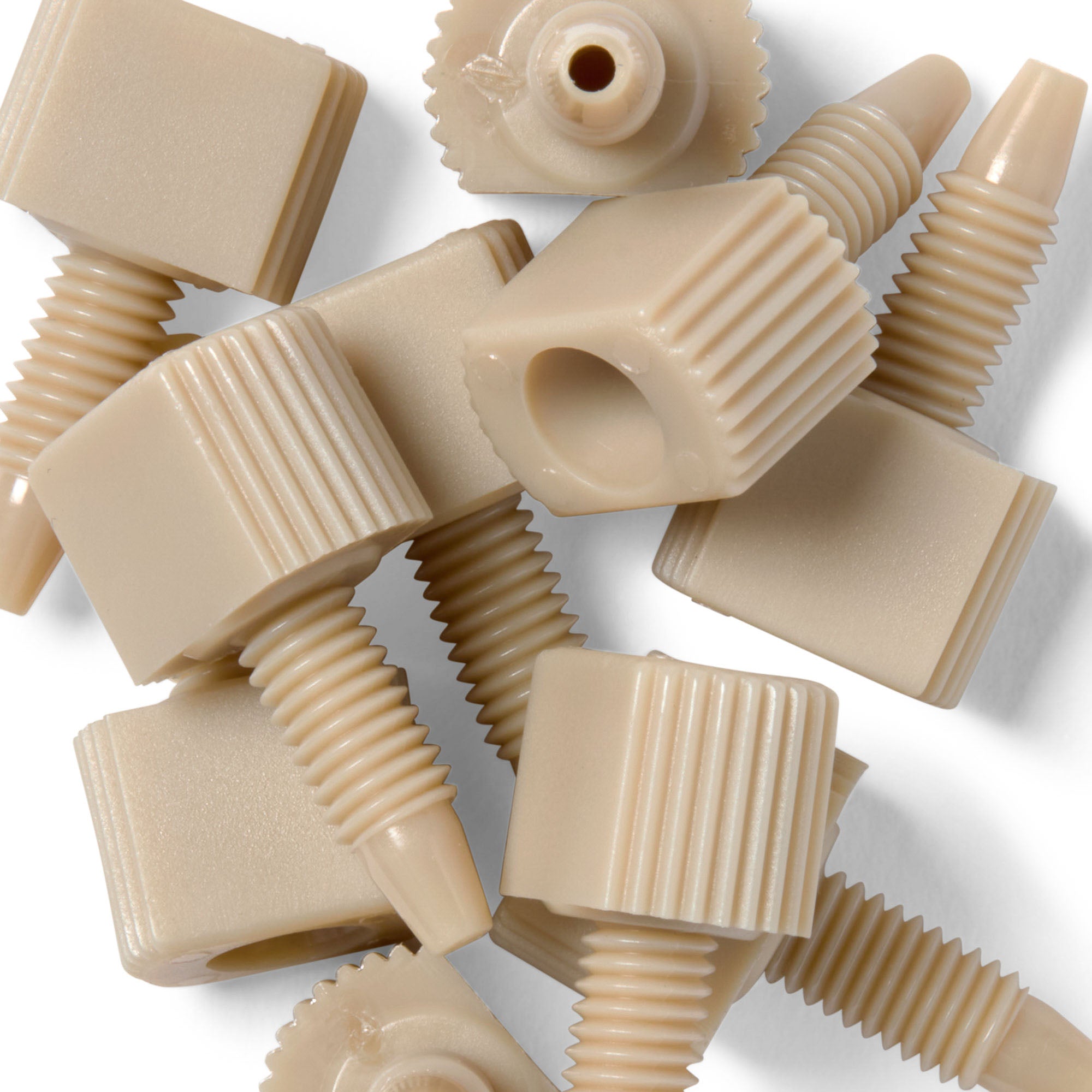

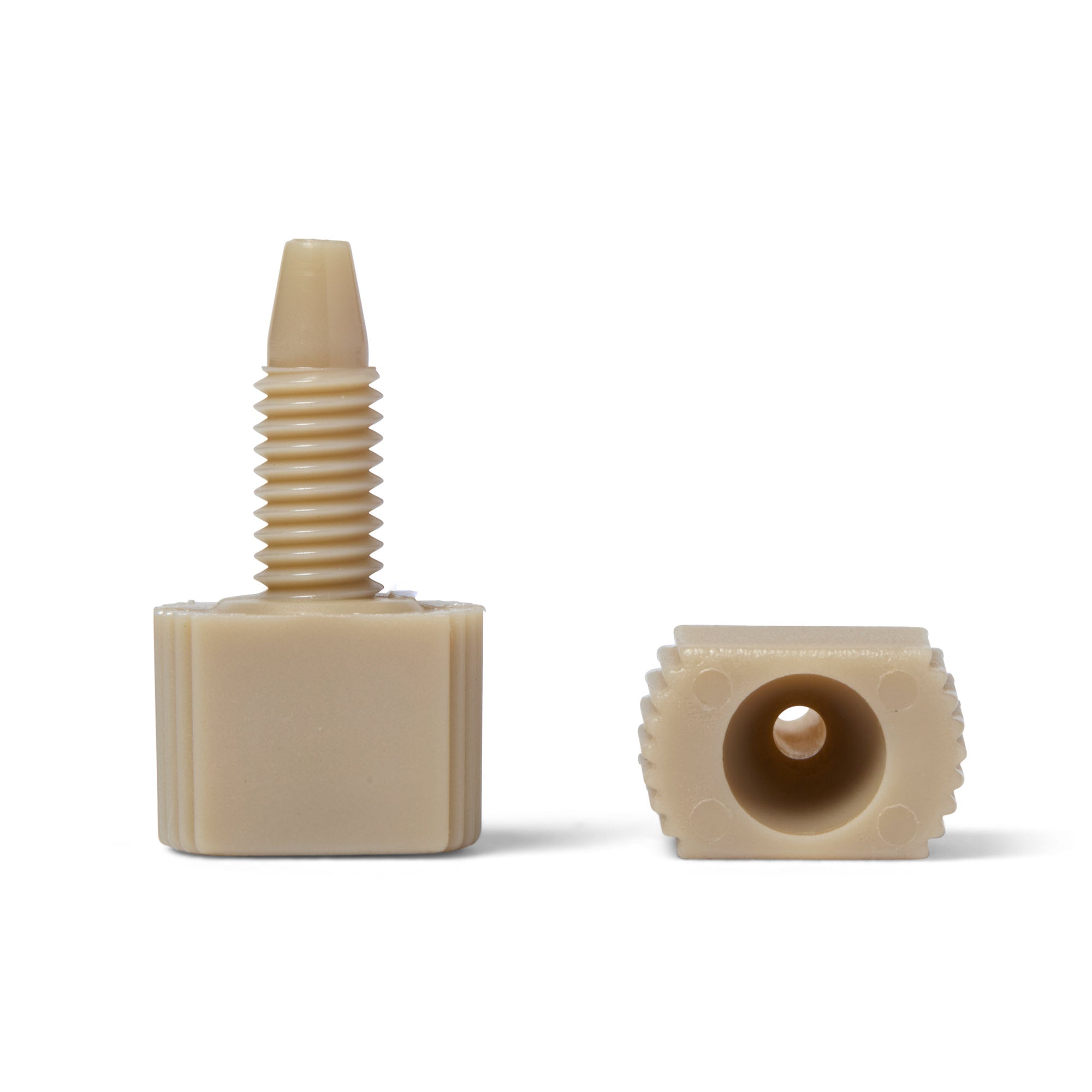

HPLC PEEK Flat Head Fitting (for 1/16" OD Tubing)

Material: PEEK

Colour: Natural/Beige

Maximum Temperature: 260°C/500°F

Flammability: UL94 V-0

• Maximum Pressure: 25Mpa (250 Bar/3625 PSI)

HPLC PEEK Flat Head Fitting (for 1/16" OD Tubing) conform to the following Standards/Norms:

The PEEK (Polyetheretherketone) HPLC Flat Head Fitting is a component specifically designed for 1/16" capillary tubes used in High-Performance Liquid Chromatography (HPLC) systems. The capillary tube and HPLC system are connected securely and without leaks thanks to this fitting, guaranteeing consistent performance and sample integrity.

Thread size: #10-32 UNF

Thread length: 0.51” (13mm)

Material: PEEK

Features:  Integrated ferrule / Flat head fitting.

Integrated ferrule:

Simplified Installation:

One-Piece Design: An integrated ferrule eliminates the need to handle separate components, simplifying the installation process and reducing the likelihood of assembly errors.

Time Efficiency: It saves time during setup, allowing for quicker and more efficient installation compared to fittings that require a separate ferrule.

Consistent and Reliable Sealing:

Optimal Alignment: The integrated ferrule ensures precise alignment with the tubing, providing a more consistent and reliable seal.

Leak Prevention: By eliminating the potential for misalignment or improper seating of a separate ferrule, the integrated design helps prevent leaks.

Flat head fitting:

Consistent and Secure Sealing:

Uniform Pressure Distribution: The flat head helps distribute pressure evenly across the sealing surface, ensuring a consistent and secure seal that prevents leaks.

Reliable Connections: This design minimizes the risk of uneven tightening, which can lead to leaks or fitting failure.

Reduced Risk of Overtightening:

Controlled Torque: The flat head design makes it easier to control the amount of torque applied, reducing the risk of overtightening, which can damage the fitting or the tubing.

Protection of Components: By preventing overtightening, the flat head design helps protect the integrity of both the fitting and the connected components.

Manufactured in PEEK:

Chemical Compatibility: PEEK is highly resistant to a wide range of chemicals, including organic solvents and acids commonly used in HPLC applications. This ensures compatibility with various solvents without degradation or leaching.

Inertness: PEEK is inert and non-reactive, minimizing the risk of introducing contaminants or altering sample integrity during chromatographic analysis. This property is crucial for maintaining the purity and reliability of analytical results.

Temperature Stability: PEEK fittings can withstand high temperatures typically encountered in HPLC systems, ensuring stability and reliability under varying operational conditions. This thermal stability prevents deformation or failure due to heat exposure.

Mechanical Strength: PEEK exhibits excellent mechanical properties, including high tensile strength and stiffness. This strength allows PEEK fittings to withstand the pressures and stresses associated with HPLC systems, ensuring long-term durability and reliability.

Dimensional Stability: PEEK maintains its dimensional stability even under fluctuating temperature and pressure conditions. This property ensures consistent performance and a secure fit over time, reducing the risk of leaks or fitting failures.

Lightweight: Despite its strength and durability, PEEK is lightweight compared to metals such as stainless steel, which can simplify handling and installation while reducing overall system weight.

Biocompatibility: PEEK is biocompatible and widely used in medical and pharmaceutical applications. In HPLC systems, this property ensures that PEEK fittings do not interact with biological samples or pharmaceutical compounds, maintaining sample purity and safety.

HPLC PEEK Flat Head Fitting applications:

Analytical HPLC Systems:

Column Connections: These fittings are used to connect 1/16" OD tubing to analytical HPLC columns, ensuring a secure and leak-free connection for precise chromatographic separations.

Detector Connections: They connect the column effluent to detectors such as UV-Vis, fluorescence, or mass spectrometers, maintaining integrity and preventing leaks in sensitive analyses.

Sample Injection Systems:

Autosampler Interfaces: HPLC flat head fittings facilitate connections between the autosampler and the HPLC system, ensuring precise and reproducible sample injections.

Manual Injector Connections: They provide secure connections for manual injection systems, offering flexibility in sample introduction methods.

Flow Control and Switching Valves:

Multiport Valves: These fittings connect 1/16" OD tubing to multiport valves, allowing for easy switching between different columns or mobile phases during method development.

Flow Splitters: They connect flow splitters to distribute flow between multiple detectors or columns, ensuring accurate flow control and distribution.

Detector and Pump Connections:

UV-Vis Detectors: HPLC flat head fittings are used to connect UV-Vis detectors to the HPLC system, maintaining a reliable flow path for accurate detection.

Pump Inlet/Outlet: They connect pump inlet and outlet tubing to ensure precise delivery of mobile phases and maintain system integrity during solvent delivery.

Preparative HPLC Systems:

Scale-Up Processes: In preparative HPLC, these fittings connect 1/16" OD tubing for larger-scale separations, ensuring robust and reliable connections during sample purification.

Fraction Collectors:

Collection Lines: HPLC flat head fittings connect fraction collector collection lines to the HPLC system, ensuring accurate and efficient sample fractionation without leaks or interruptions.

Buffer and Mobile Phase Preparation:

Mobile Phase Lines: These fittings connect tubing used for preparing mobile phases and buffers, ensuring precise delivery of solvent mixtures to the HPLC system.

Environmental and Food Testing:

Analytical Applications: HPLC flat head fittings are used in environmental and food testing laboratories for analysing contaminants, pesticides, and other compounds in water, soil, and food samples.

Quality Control: They facilitate quality control testing in industries such as pharmaceuticals, ensuring accurate analysis of drug substances and formulations.

Biomedical Research:

Proteomics and Metabolomics: In biomedical research, these fittings are used in HPLC systems for analysing proteins, peptides, metabolites, and other biomolecules, ensuring high sensitivity and accuracy.

Industrial Applications:

Process Monitoring: HPLC flat head fittings are utilized in industrial settings for monitoring chemical processes, ensuring product quality and compliance with regulatory standards.

The PEEK data sheet is available as a PDF to download below.
