Dimension Table
Dimensions for HPLC PEEK Finger Tight Fitting Assembly in all available sizes are shown according to the product drawing above.
Need Help?
Our team are always happy to help!
Live Chat: Available from the bottom right of your screen.
Email: sales@highperformancepolymer.com
Phone: +44(0)1865 684080
Material: PEEK
Colour: Natural/Beige
Maximum Temperature: 260°C/500°F
Flammability: UL94 V-0
HPLC PEEK Finger Tight Fitting Assembly conform to the following Standards/Norms:

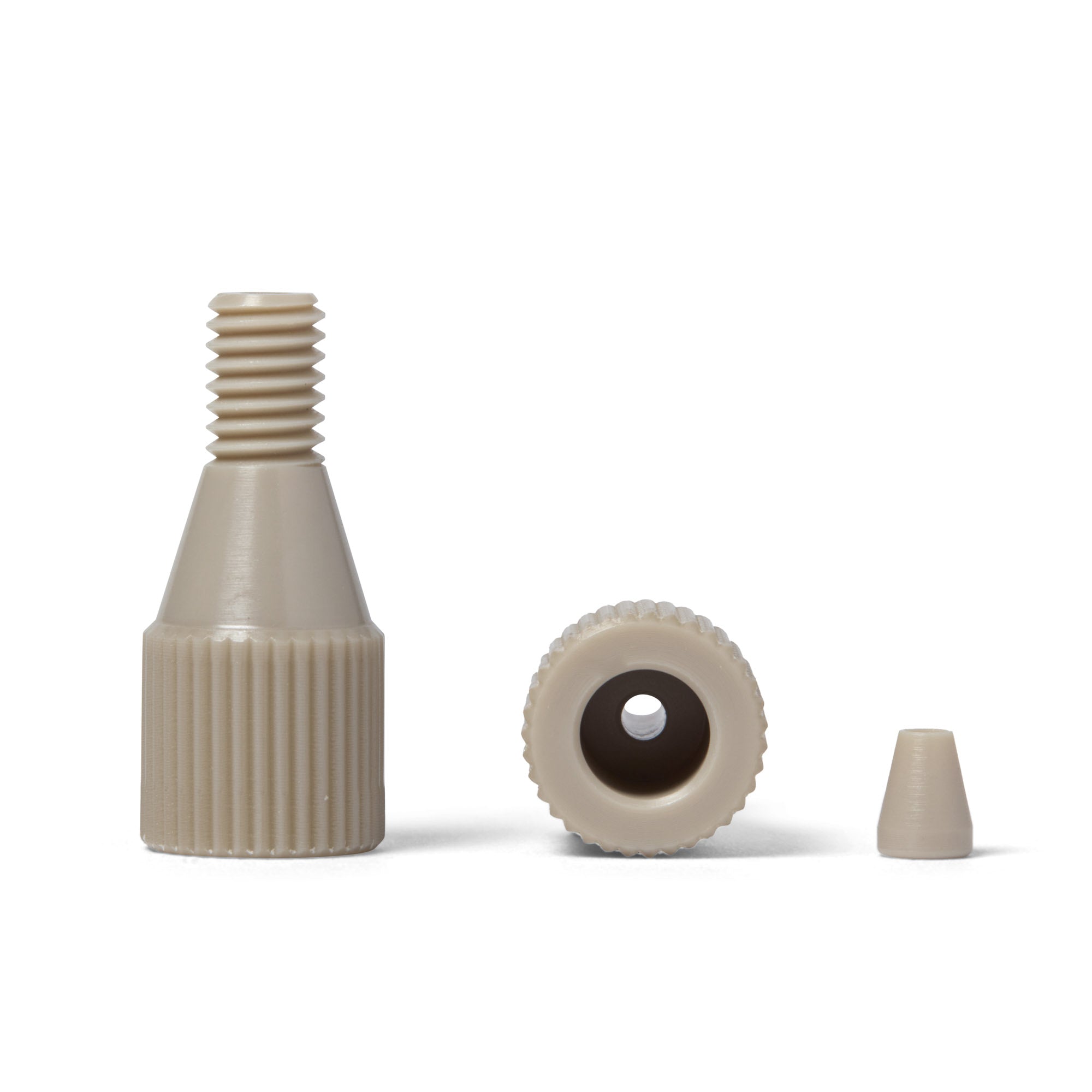

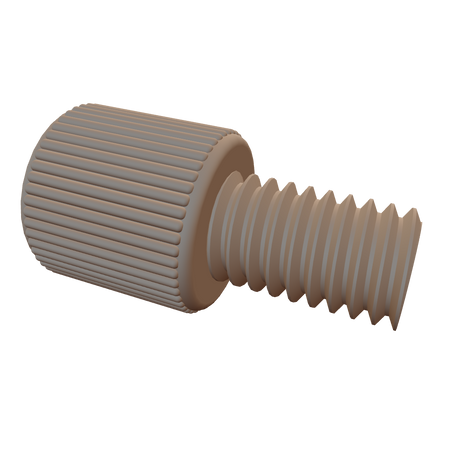

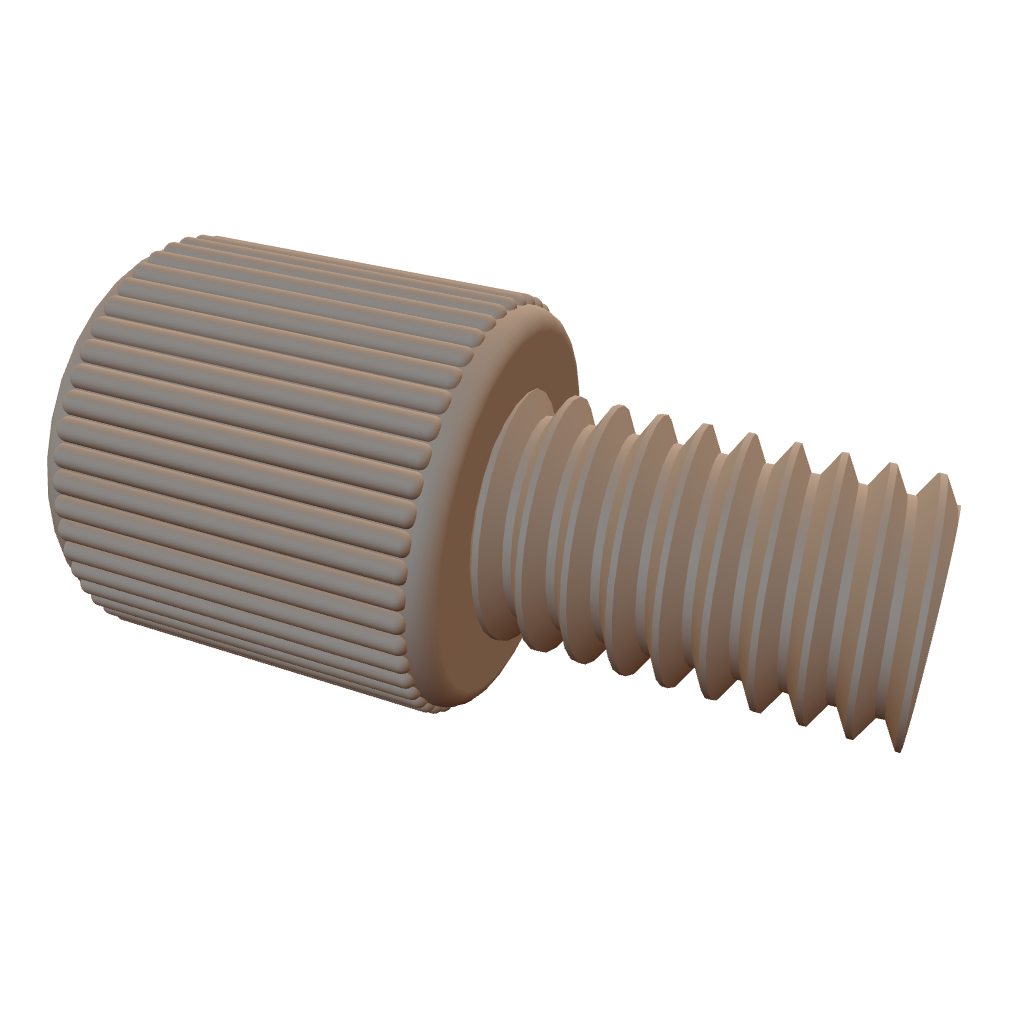

The HPLC Finger Tight Fitting Assembly made of PEEK (Polyetheretherketone) is a specialized component designed for 1/16" and 1/8" capillary tubes used in High-Performance Liquid Chromatography (HPLC) systems. This unique fitting assembly offers convenient and tool-free assembly, providing a secure and leak-free connection between the capillary tube and the HPLC system.
Thread size: #10-32 UNF, #1/4-28 UNF
Thread length: 0.47” (for 1/16”), 0.37” (for 1/8”).
Material: PEEK
Features: Comes with ferrule / Finger-tight fitting.
Versatility: Supports a wide range of experimental setups and system configurations, providing flexibility to adapt to different chromatographic methods and requirements.
Cost Efficiency: Eliminates the need for specialized tools, reducing costs associated with purchasing and maintaining additional equipment.
Versatility in Use: Allows for easy adaptation to different tubing sizes and materials, making it compatible with a wide range of HPLC setups and applications.
Cost-Effective: Enables the reuse of the fitting body with multiple ferrules, reducing the need to replace the entire fitting assembly when switching tubing or if the ferrule becomes damaged or worn.
Chemical Resistance: PEEK exhibits excellent resistance to a wide range of chemicals and solvents commonly used in HPLC, ensuring long-term durability and compatibility without degradation or reaction.
High Temperature Stability: PEEK maintains its mechanical properties and dimensional stability at elevated temperatures, which is crucial for HPLC systems operating under thermal stress.
Mechanical Strength: PEEK provides superior tensile strength and toughness, ensuring robust and reliable performance in demanding laboratory environments.
Low Extractables: PEEK has low levels of extractable substances, minimizing the risk of contamination and ensuring the purity and accuracy of analytical results.
Biocompatibility: PEEK is biocompatible, making it suitable for HPLC applications involving biological samples or pharmaceutical analyses where sample integrity is critical.
Lightweight: PEEK is lightweight yet strong, making the fittings easier to handle during installation and maintenance without compromising durability.
Durability: PEEK is resistant to wear, abrasion, and fatigue, providing a long service life and reducing the need for frequent replacements.
Versatility: PEEK's compatibility with a wide range of solvents and chemicals makes it versatile for different chromatographic methods and experimental setups.
Column Installation:
Analytical Columns: Securely connect analytical columns to the HPLC system, ensuring leak-free and stable connections for precise analytical results.
Guard Columns: Attach guard columns to protect the main analytical column from contaminants and particulates, enhancing the longevity and performance of the analytical column.
Injector and Detector Connections:
Injector Ports: Facilitate the connection of injector valves to the HPLC system, allowing for accurate sample introduction and preventing leaks.
Detector Ports: Ensure secure and reliable connections between the HPLC system and detectors, such as UV-Vis, fluorescence, or mass spectrometers, for accurate detection and analysis.
Tubing Connections:
Solvent Delivery Systems: Connect solvent reservoirs to the HPLC system, ensuring consistent and leak-free delivery of mobile phases.
Waste Lines: Securely connect waste lines to the system to safely dispose of used solvents and samples without leaks or spills.
Valve Assemblies:
Switching Valves: Use in multi-port valves to switch between different mobile phases or columns, providing flexibility and precision in method development and sample analysis.
Flow Control Valves: Ensure precise control of flow rates within the HPLC system, maintaining optimal performance and reproducibility.
The PEEK data sheet is available as a PDF to download below.
Return components within 90 days for a full refund. Please see returns terms and conditions for further information.
HPLC PEEK Finger Tight Fitting Assembly | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Tube Outer Diameter | Thread Size | Thread Series | Thread Length | Head Diameter | Head Height | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
1/16" | #10-32 | UNF | 0.47" (12mm) | 0.35" (9mm) | 0.39" (10mm) | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
1/8" | #1/4-28 | UNF | 0.37" (9.4mm) | 0.37" (9.5mm) | 0.37" (9.6mm) |
Dimensions for HPLC PEEK Finger Tight Fitting Assembly in all available sizes are shown according to the product drawing above.
Follow the link below to view our PEEK data sheet. This includes properties such as mechanical, electrical, thermal and chemical resistance.
