Why are there different type of screw head types?

A Historical Timeline of Screw Drive Types

Screws have been an integral part of human civilization for centuries, serving as fundamental fasteners in construction, machinery, and everyday objects. The design of screw heads and the corresponding drive types has evolved over time to improve efficiency, torque transmission, and ease of use. In this historical timeline, we'll explore the evolution of six prominent screw drive types: Slotted, Robertson, Hexagon, Phillips, Pozi, and Torx.

1. Slotted Drive: An Ancient Invention

  • Ancient Beginnings (15th Century BC - 18th Century AD): The earliest form of a screw was the slotted drive, dating back to ancient civilizations such as the Egyptians and Greeks. This simple linear groove allowed screws to be turned using rudimentary tools like flat sticks or chisels.

  • Industrial Revolution (18th Century - 19th Century): Slotted drives continued to be used in various applications during the Industrial Revolution, but their limitations in terms of torque transmission and ease of use became apparent.

2. Robertson Drive: Precision in the Early 20th Century

  • Early 20th Century (1908): Canadian engineer P.L. Robertson revolutionized screw technology by introducing the square-drive screw. This design featured a square-shaped recess in the screw head and a matching square driver. Robertson's innovation provided better torque transmission, reduced cam-out (when the driver slips out of the screw head), and improved efficiency.

  • Widespread Adoption (1920s - 1930s): The Robertson drive quickly gained popularity in Canada and parts of the United States due to its reliability and efficiency.

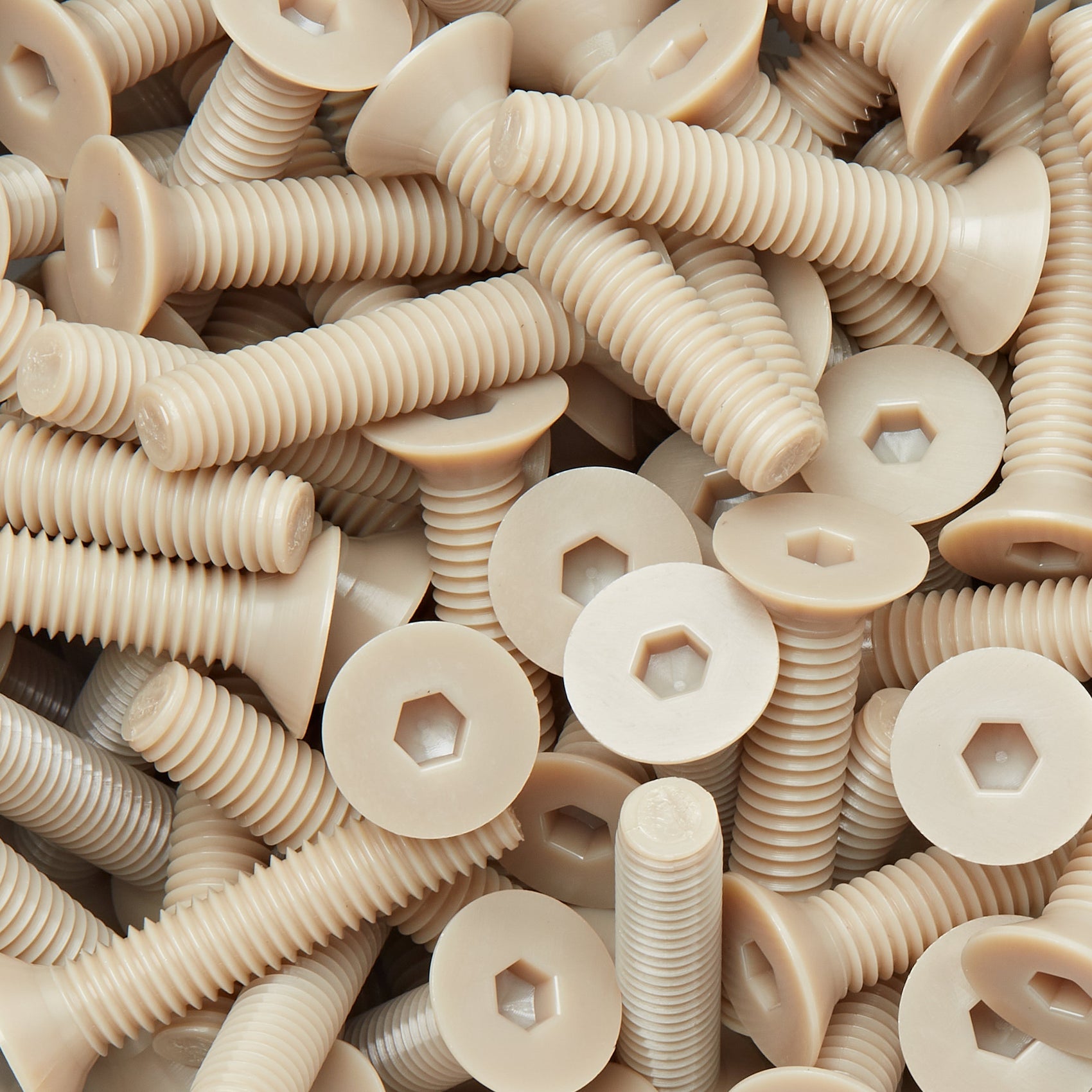

3. Hexagon Drive: Utilitarian and Ubiquitous

  • Mid-20th Century (1940s): The hexagon or hex drive, characterized by a six-sided recess and matching driver, became increasingly common. Its geometry allowed for easy torque application, reduced slipping, and a wide range of applications, particularly in machinery and automotive industries.

  • Continued Prevalence (1950s - Present): The hex drive remains one of the most ubiquitous screw drive types, with variations like socket heads and Allen wrenches used in countless applications worldwide.

4. Phillips Drive: The Automotive Revolution

  • 1930s - 1940s: Henry F. Phillips developed the Phillips screw drive, featuring a cruciform-shaped recess and driver. Its self-centering design and reduced cam-out made it ideal for assembly lines, particularly in the automotive industry.

  • Widespread Adoption (1950s): The Phillips drive became the standard for many industries, enhancing efficiency and reducing production costs.

5. Pozi Drive: Enhancing the Phillips Design

  • 1960s: The Pozi drive, developed in Europe, improved upon the Phillips drive. It featured additional ribs on the driver and corresponding notches on the screw, reducing cam-out and providing better torque transmission.

  • Global Use (1970s - Present): Pozi drives are widely used in Europe and have gained popularity in other regions for their improved performance compared to the Phillips drive.

6. Torx Drive: Precision and Security

  • 1960s - 1970s: Camcar Textron (now part of Acument Global Technologies) introduced the Torx drive, characterized by a star-shaped recess and matching driver. This design offered increased torque application, reduced wear, and enhanced security against tampering.

  • Modern Applications (1980s - Present): Torx screws are prevalent in electronics, aerospace, and high-security environments due to their resistance to common tampering methods.

Conclusion: Evolution and Diversity The history of screw drive types is a testament to human ingenuity and the continuous quest for efficiency and reliability. From the ancient slotted drive to the modern Torx design, each drive type reflects the evolving needs of various industries and applications. Today, a diverse range of screw drive types exists, ensuring that the right fastener can be chosen for any specific task, be it in construction, manufacturing, or everyday DIY projects. As technology advances, we can expect further innovations in screw drive designs to meet the ever-changing demands of our fastening needs.
